Tylaska 3.15" H8 Aluminum Halyard Shackle

Item #

TY1408

Product Description

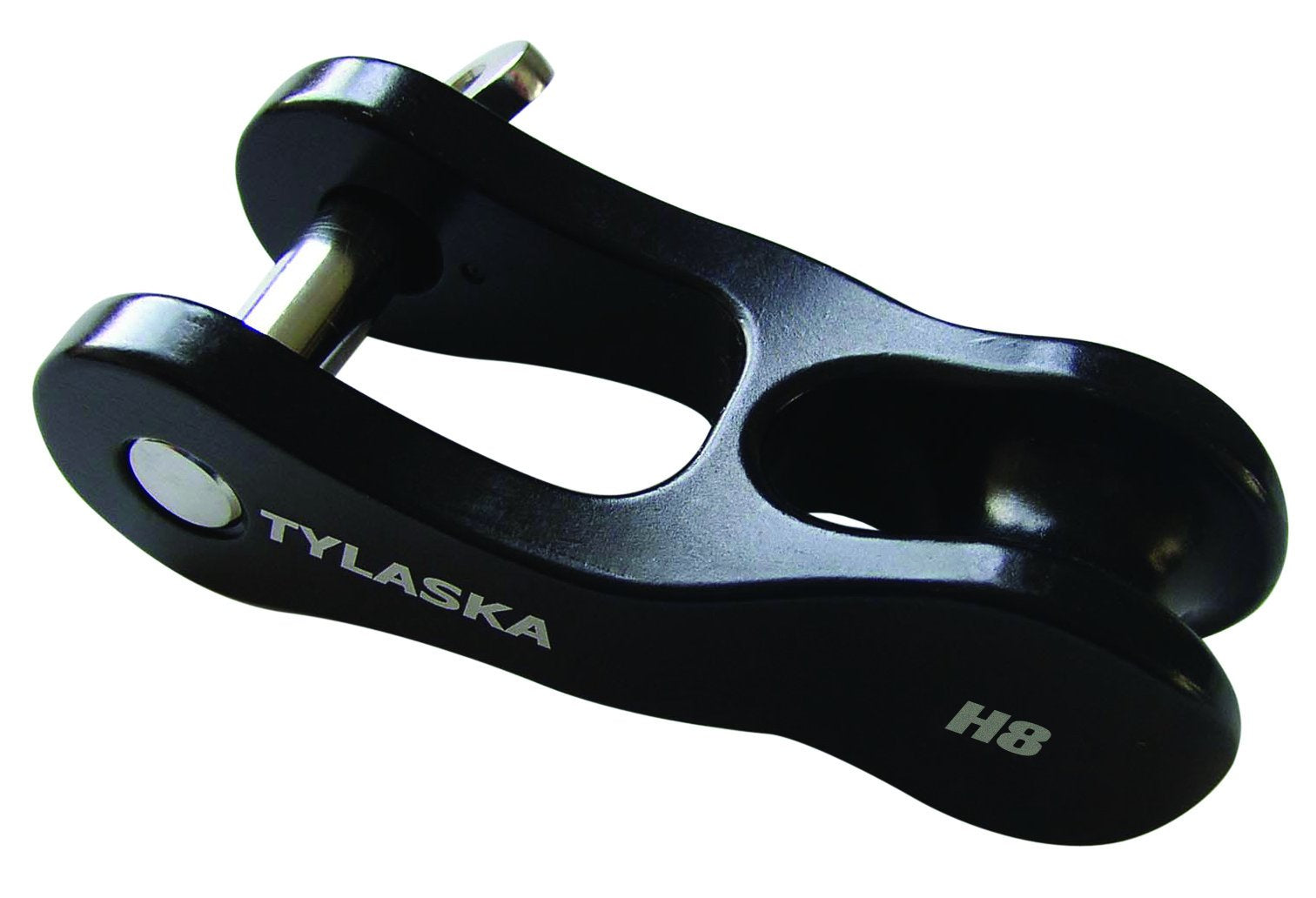

Tylaska 3.15" H8 Aluminum Halyard Shackle

Tylaska’s halyard shackles are machined from aerospace grade aluminum plate and hard-coat anodized to military specifications for superior strength and durability. A captive 17-4PH stainless steel pin makes for trouble-free operation. The machined thimble surface is suitable for permanently spliced fixed halyards.

Specifications

  • Shackle Type - H8

  • Safe Working Load(lb.) - 4,000 (1,810kg)

  • Breaking Strength(lb.) - 8,000 (3,630kg)

  • Line Size(in.) - 3/8"-1/2" (10mm-12mm)

  • Weight(oz.) - 3.1 (87g)

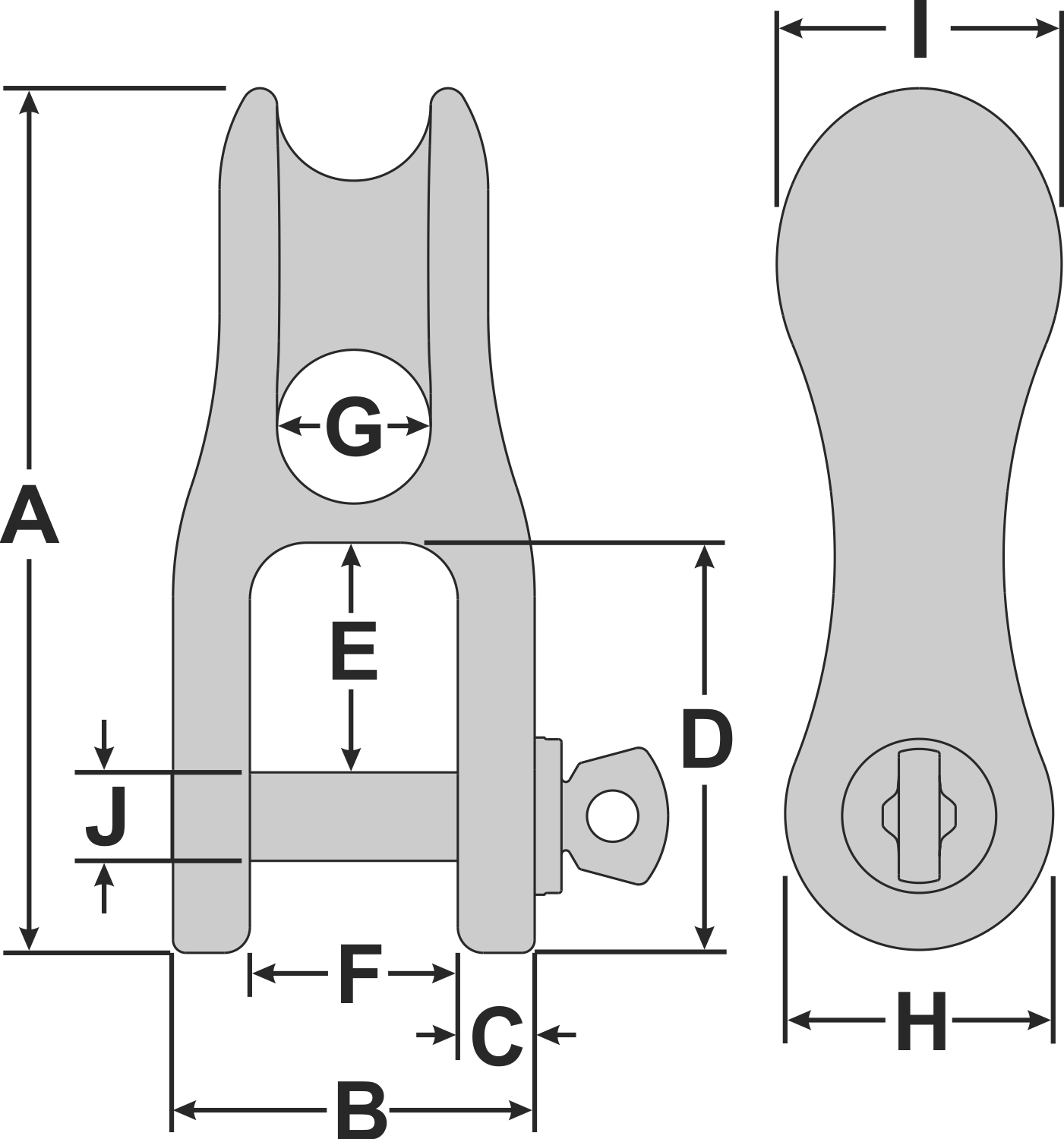

    Dimensions

  • A(in.) - 3.16" (80.2mm)

  • B(in.) - 1.32" (33.5mm)

  • C(in.) - 0.28" (7.1mm)

  • D(in.) - 1.50" (38.2mm)

  • E(in.) - 0.83" (21.2mm)

  • F(in.) - 0.76" (19.3mm)

  • G(in.) - 0.56" (14.3mm)

  • H(in.) - 1.00" (25.4mm)

  • I(in.) - 1.07" (27.1mm)

  • J(in.) - 0.31" (8.1mm)
  •
