Tylaska H20 2:1 Aluminum Halyard Shackle

Item #

TY1520

Product Description

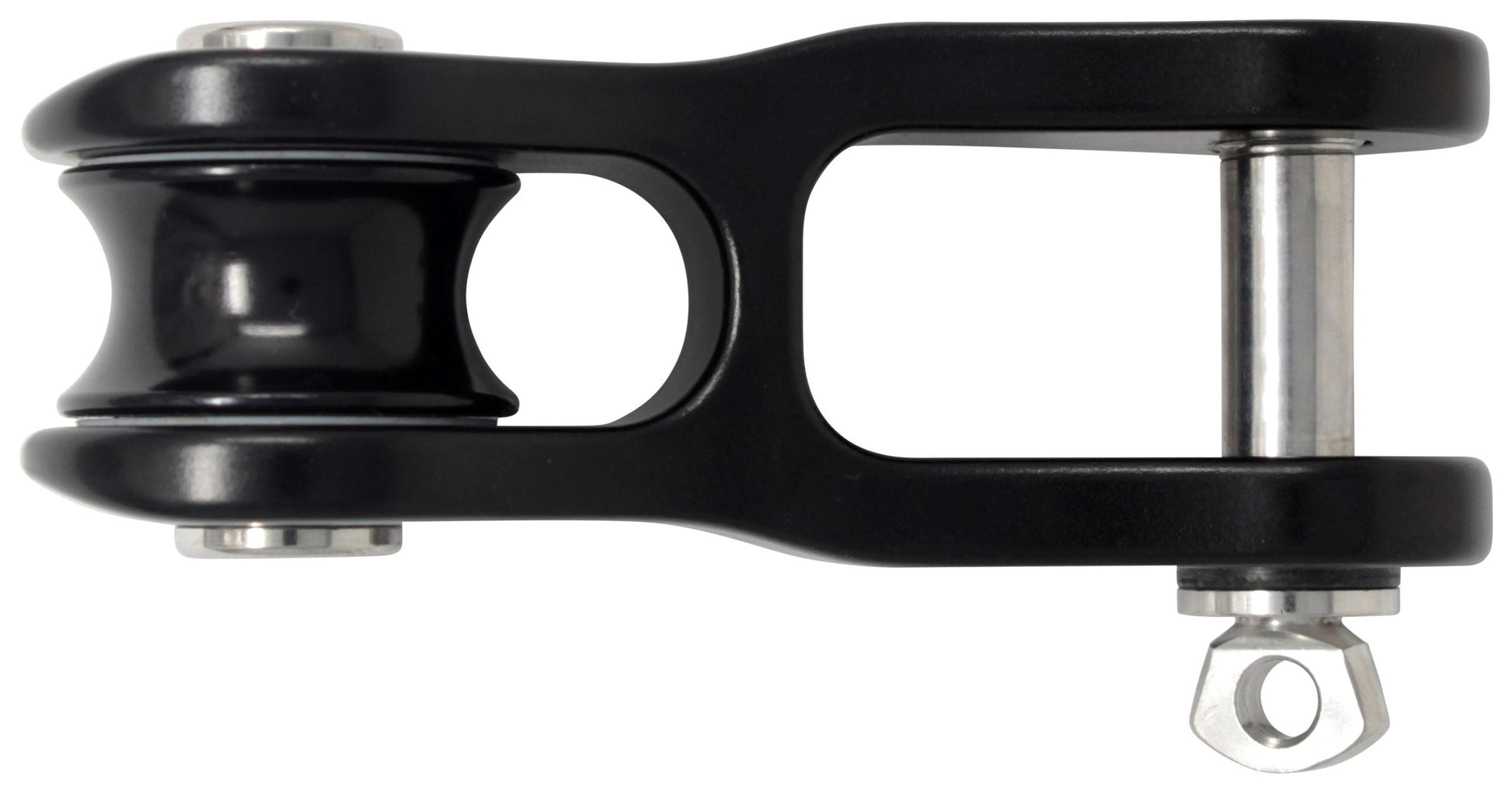

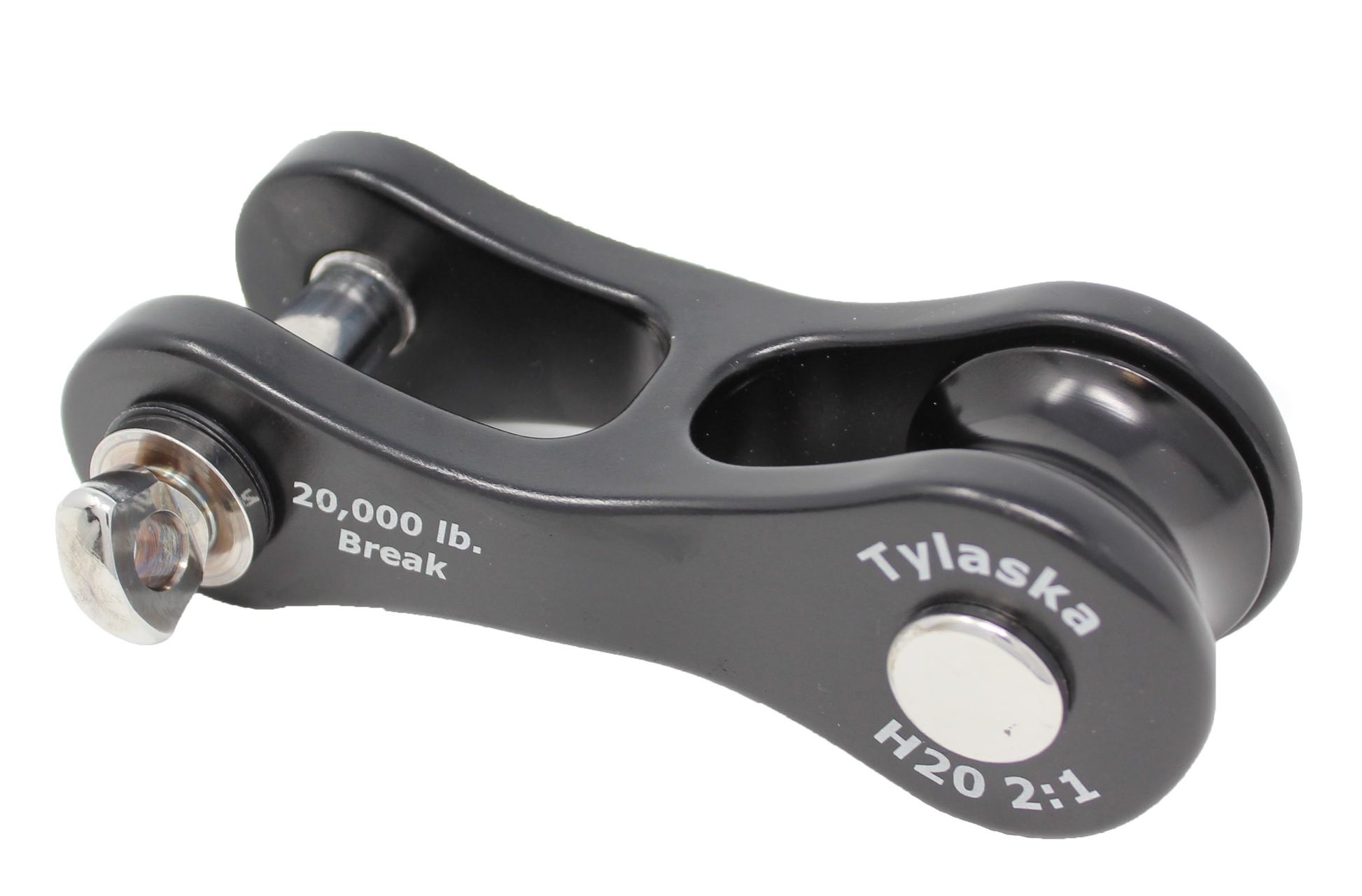

Tylaska H20 2:1 Aluminum Halyard Shackle

Using a high strength composite sleave bearing, Tylaska has created true 2-1 halyard shackles capable of handling the full rated load of the shackle. The size was made to fit standard sail headboards without adding any unnecessary weight. Strength was optimized by computer and then verified by numerous "make and break" destructive tests.

Specifications

  • Safe Working Load - 10,000 lb. (4,545kg)

  • Breaking Strength - 20,000 lb. (9,091kg)

  • Line Size - 7/8" (22mm)

  • Weight - 13.3 oz. (337 gm)

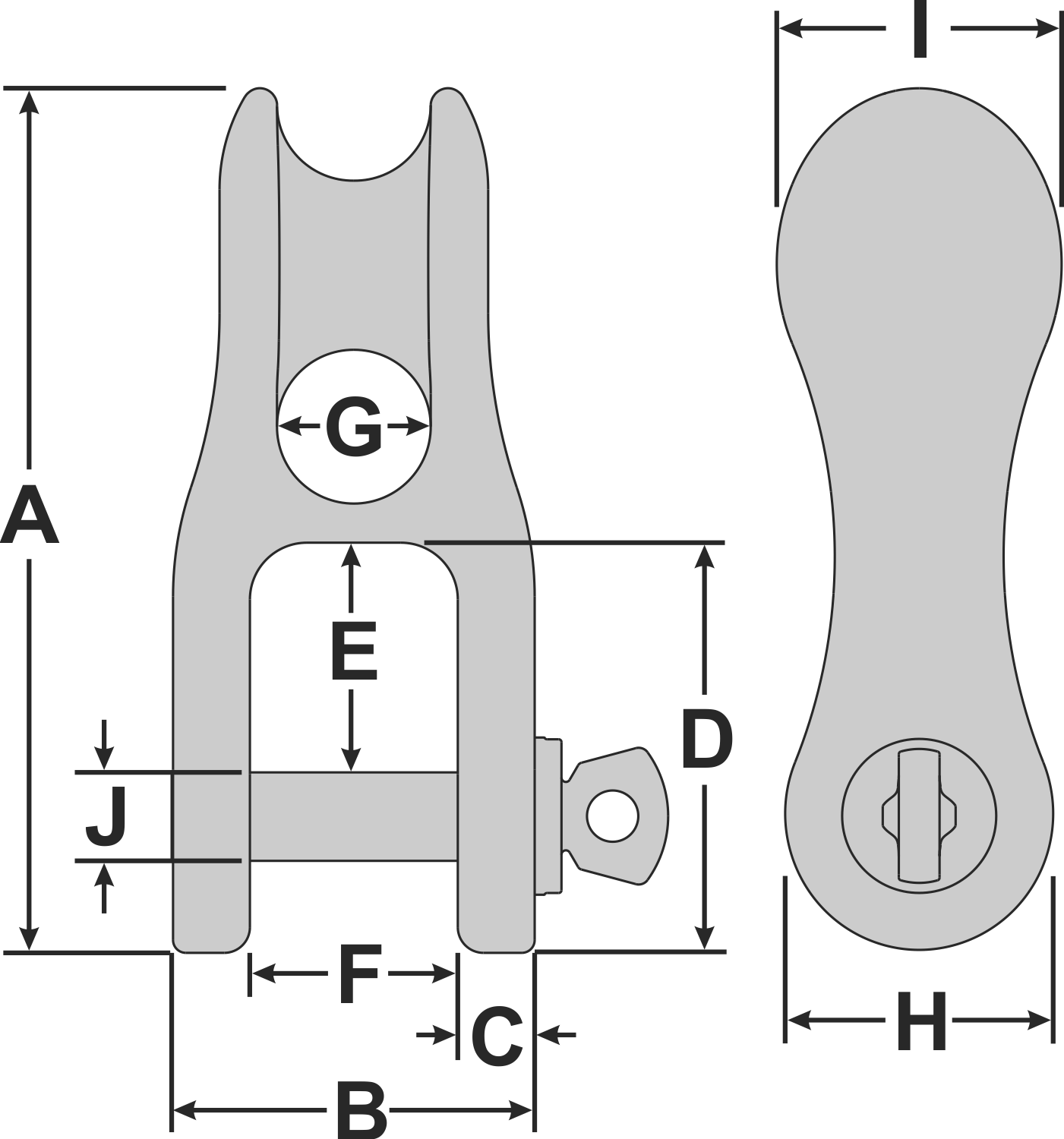

    Dimensions

  • A(overall length) - 5.25 (133.4)

  • B(overall width) - 1.833 (46.5)

  • C(ear thickness) - .416 (10.6)

  • D(overall throat length) - 2.5 (63.5)

  • E(effective throat length) - 1.44 (36.6)

  • F(inside throat width) - 1 (25.4)

  • G(thimble groove width) - .88 (22.4)

  • H(overall ear height) - 1.58 (40.1)

  • I(overall thimble height) - 1.8 (45.7)

  • J(pin min. dia.) - 0.5 (12.7)
  •
