Tylaska 4.84" H20 Aluminum Halyard Shackle

Item #

TY1420

Product Description

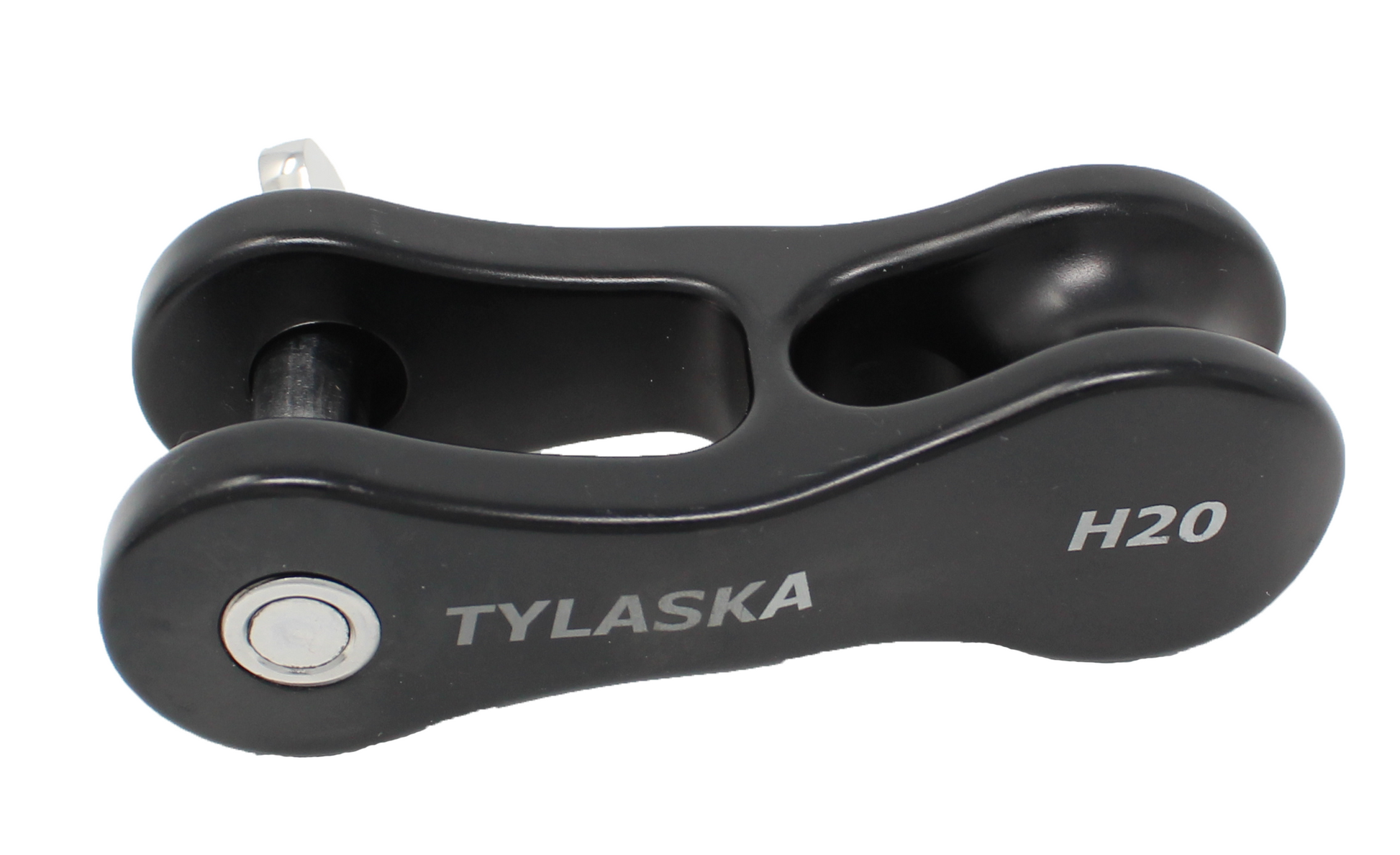

Tylaska 4.84" H20 Aluminum Halyard Shackle

Tylaska’s halyard shackles are machined from aerospace grade aluminum plate and hard-coat anodized to military specifications for superior strength and durability. A captive 17-4PH stainless steel pin makes for trouble-free operation. The machined thimble surface is suitable for permanently spliced fixed halyards.

Specifications

  • Shackle Type - H20

  • Safe Working Load(lb.) - 10,000 (4,540kg)

  • Breaking Strength(lb.) - 20,000 (9,070kg)

  • Line Size(in.) - 1/2"-5/8" (12mm-16mm)

  • Weight(oz.) - 10.5 (296g)

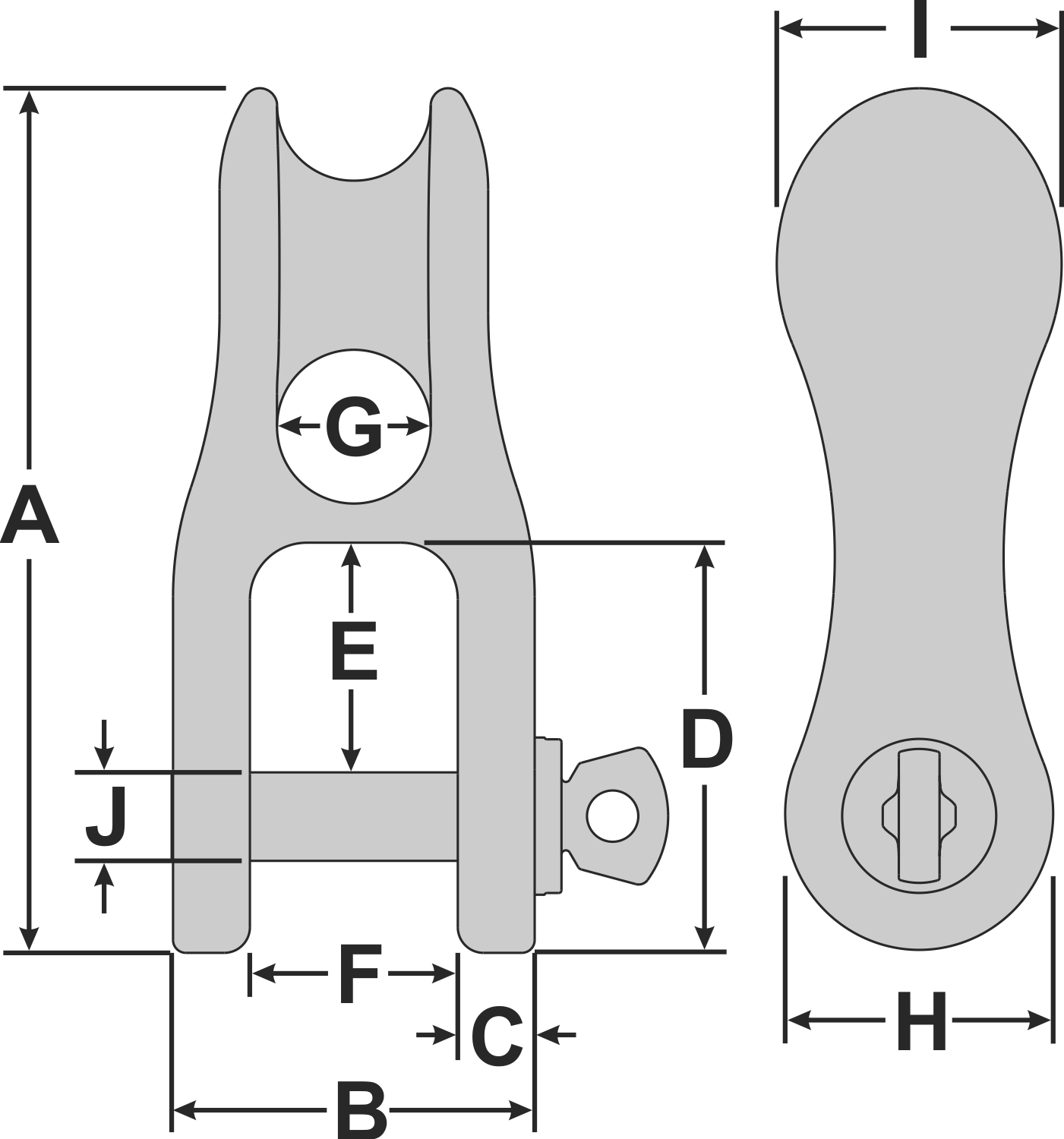

    Dimensions

  • A(in.) - 4.84" (122.9mm)

  • B(in.) - 1.84" (46.7mm)

  • C(in.) - 0.42" (10.7mm)

  • D(in.) - 2.50" (63.5mm)

  • E(in.) - 1.50" (38.1mm)

  • F(in.) - 1.00" (25.4mm)

  • G(in.) - 0.75" (19mm)

  • H(in.) - 1.50" (38.1mm)

  • I(in.) - 1.58" (40.1mm)

  • J(in.) - 0.50" (12.7mm)
  •
