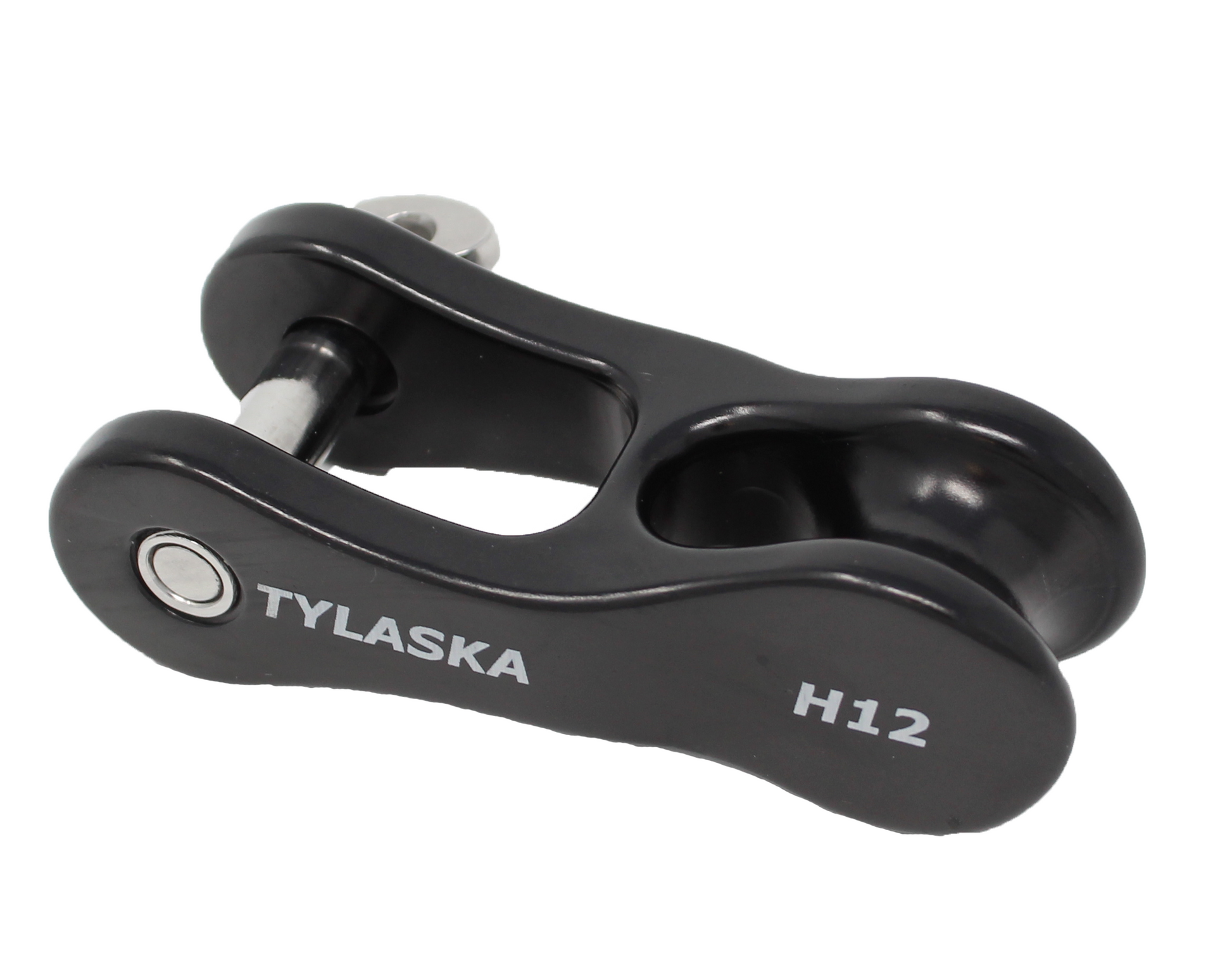

Tylaska 3.74" H12 Aluminum Halyard Shackle

Item #

TY1412

Product Description

Tylaska 3.74" H12 Aluminum Halyard Shackle

Specifications

  • Shackle Type - H12

  • Safe Working Load(lb.) - 6,000 (2,720kg)

  • Breaking Strength(lb.) - 12,000 (5,440kg)

  • Line Size(in.) - 7/16"-9/16" (11mm-14mm)

  • Weight(oz.) - 4.7 (132g)

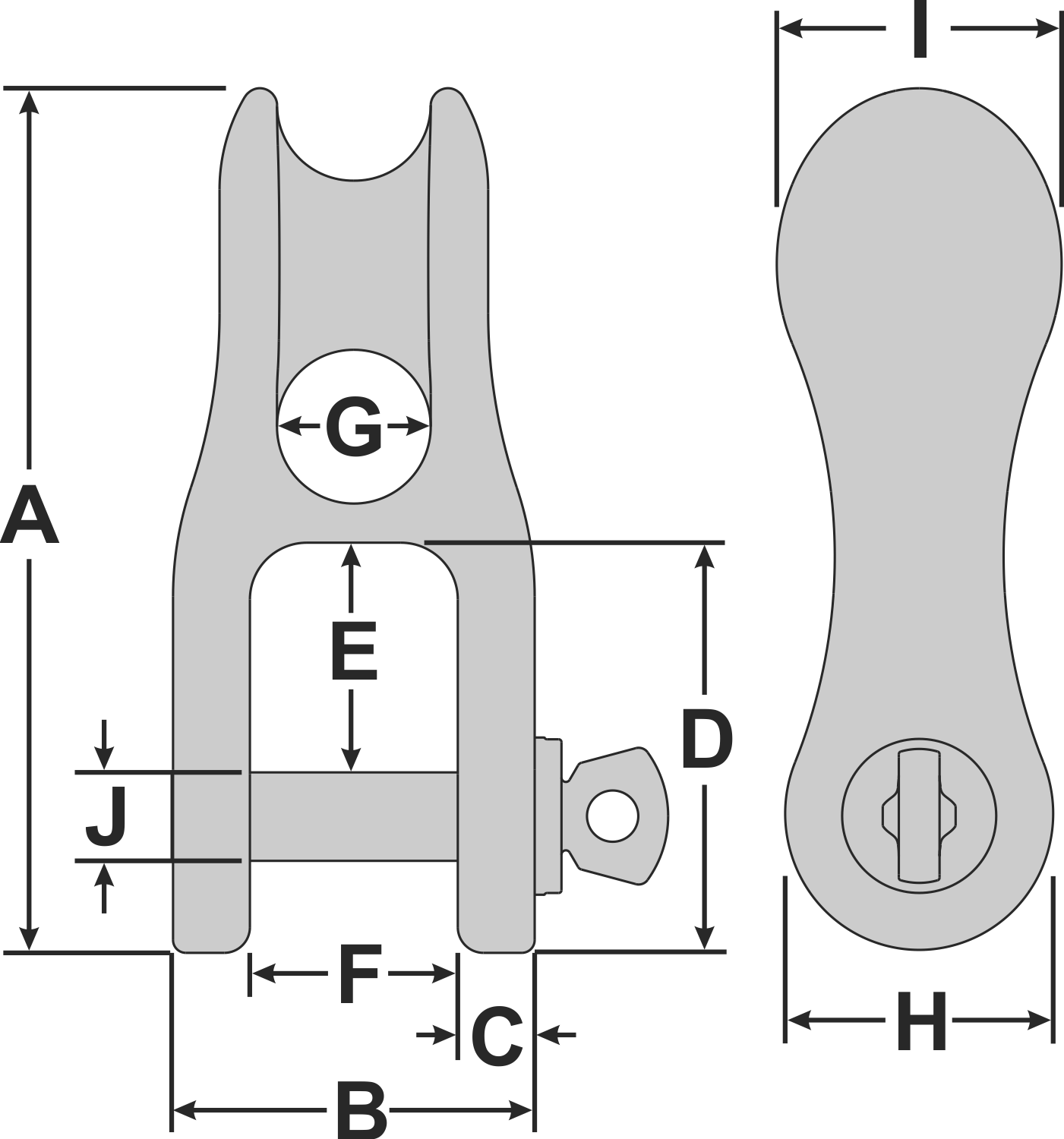

    Dimensions

  • A(in.) - 3.74" (95mm)

  • B(in.) - 1.50" (38.1mm)

  • C(in.) - 0.31" (7.9mm)

  • D(in.) - 1.90" (48.3mm)

  • E(in.) - 1.14" (29mm)

  • F(in.) - 0.88" (22.4mm)

  • G(in.) - 0.63" (15.9mm)

  • H(in.) - 1.12" (28.4mm)

  • I(in.) - 1.21" (30.7mm)

  • J(in.) - 0.38" (9.7mm)
  •
