Tylaska H8 2:1 Aluminum Halyard Shackle

Item #

TY1508

Product Description

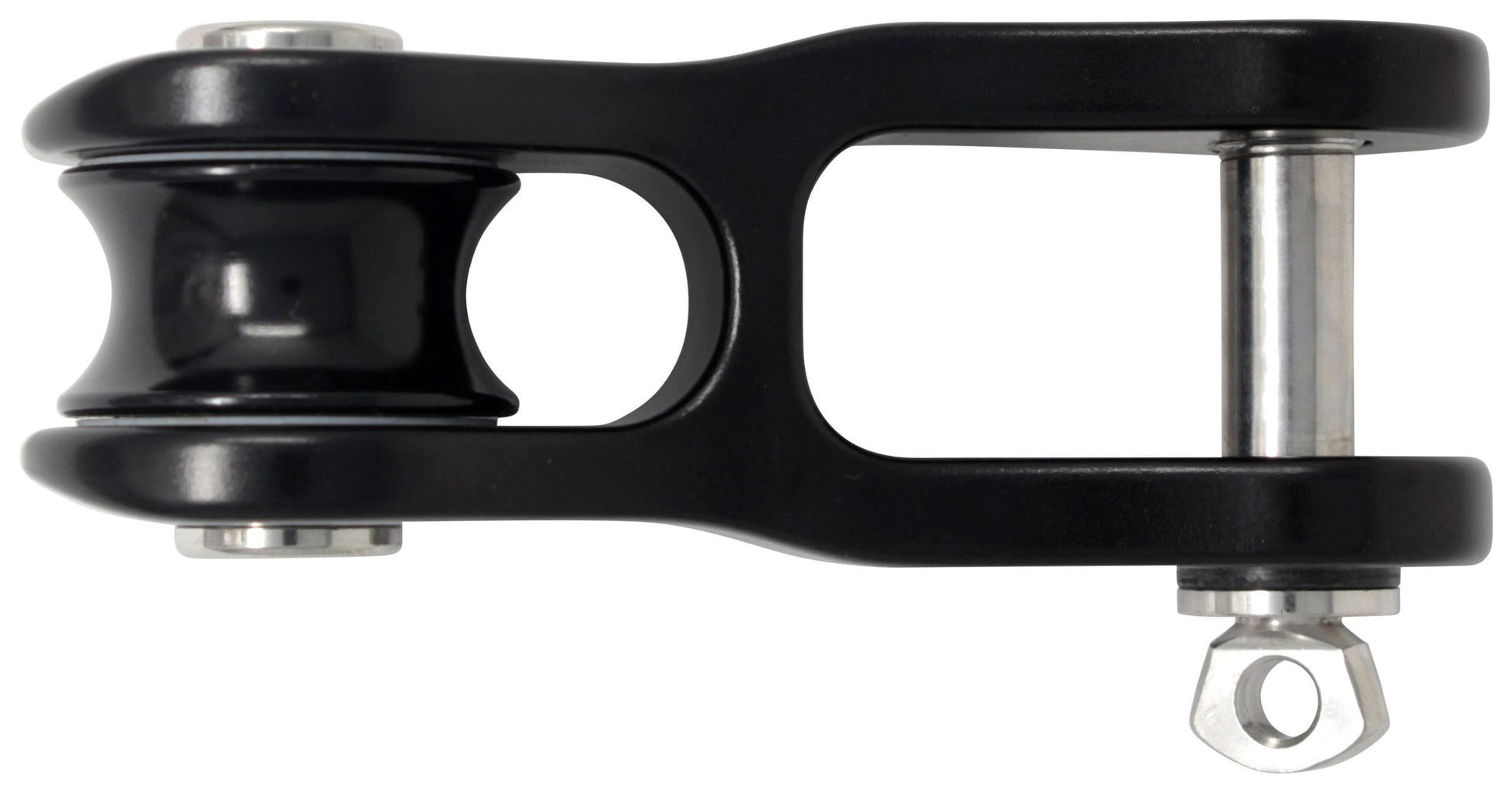

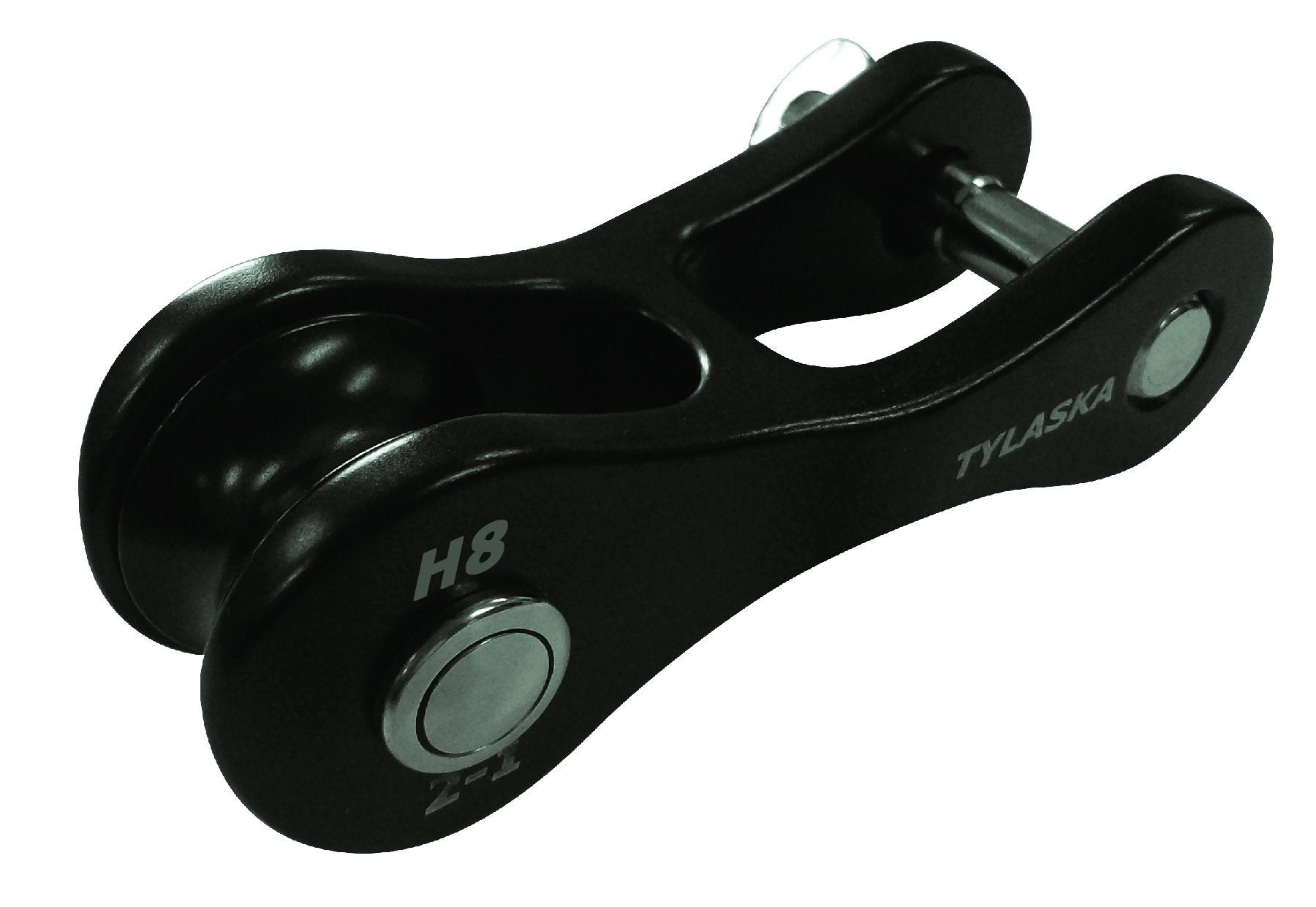

Tylaska H8 2:1 Aluminum Halyard Shackle

Using a high strength composite sleave bearing, Tylaska has created true 2-1 halyard shackles capable of handling the full rated load of the shackle. The size was made to fit standard sail headboards without adding any unnecessary weight. Strength was optimized by computer and then verified by numerous "make and break" destructive tests.

Specifications

  • Safe Working Load - 4000 lb. (1,818kg)

  • Breaking Strength - 8000 lb. (3,636kg)

  • Line Size - 9/16" (14mm)

  • Weight - 3.9 oz. (110.6 gm)

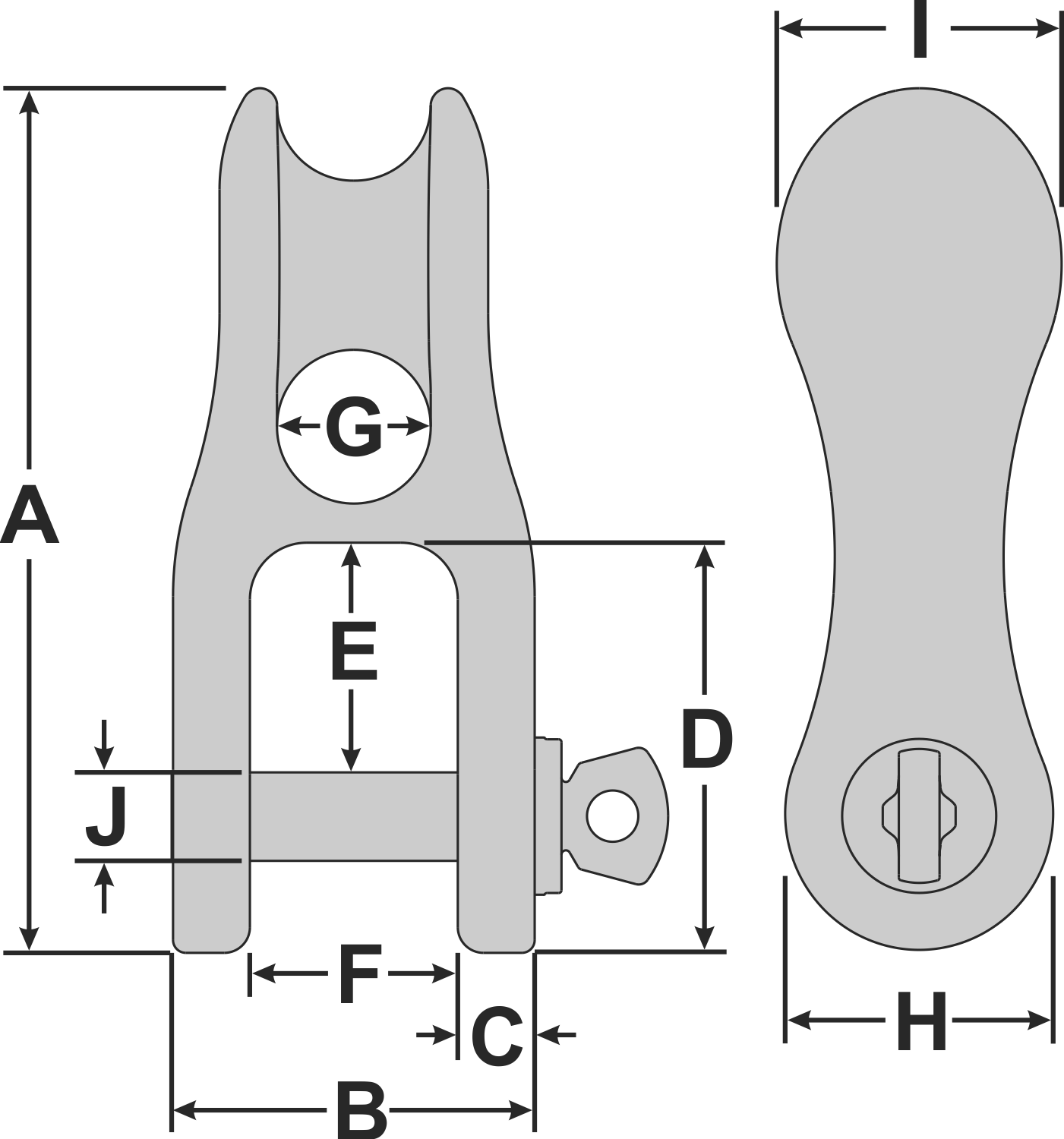

    Dimensions

  • A(overall length) - 3.32 (84.3)

  • B(overall width) - 1.315 (33.4)

  • C(ear thickness) - 0.281 (7.1)

  • D(overall throat length) - 1.5 (38.1)

  • E(effective throat length) - 0.85 (21.6)

  • F(inside throat width) - 0.76 (19.3)

  • G(thimble groove width) - 0.63 (16)

  • H(overall ear height) - 1 (25.4)

  • I(overall thimble height) - 1.24 (31.5)

  • J(pin min. dia.) - 0.32 (8.1)
  •
