Tylaska 3 1/4" T12 Standard/Standard Bail Swivel

Item #

TY1212-SS

Product Description

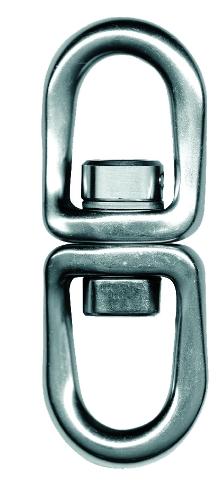

Tylaska 3 1/4" T12 Standard/Standard Bail Swivel

Standard Bails provide ample room for attaching a line while keeping weight and overall shackle length to a minimum. Ideal for halyards and sheets.

Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.

Specifications

  • Shackle Type - T12 Std/Std Bail Swivel

  • Safe Working Load(lb.) - 6,000 (2,720kg)

  • Breaking Strength(lb.) - 12,000 (5,440kg)

  • Weight(oz.) - 4.4

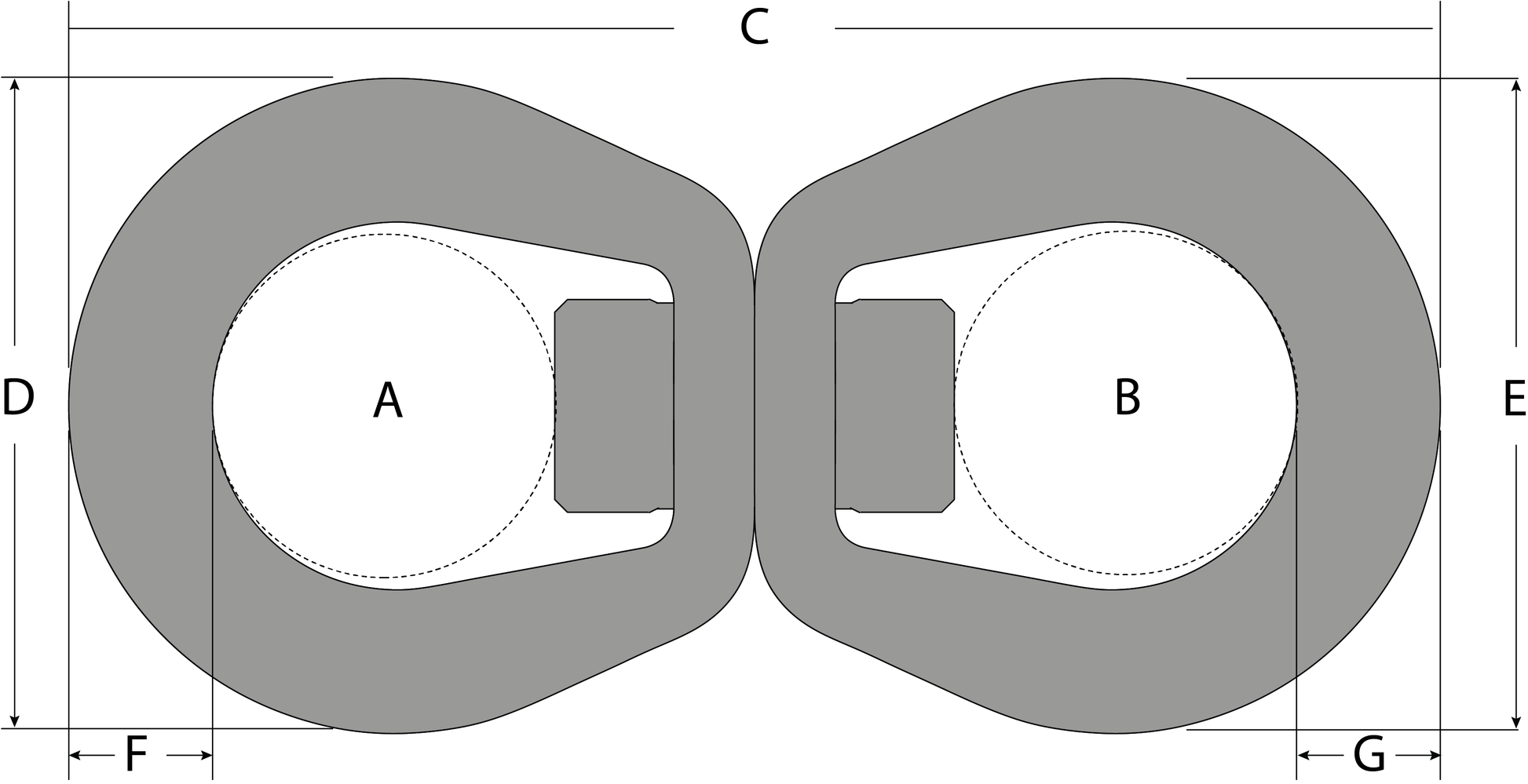

    Dimensions

  • A(in.) - 0.72" (18.3mm)

  • B(in.) - 0.72" (18.3mm)

  • C(in.) - 3.35" (85.1mm)

  • D(in.) - 1.39" (35.3mm)

  • E(in.) - 1.39" (35.3mm)

  • F(in.) - 0.30" (8.4mm)

  • G(in.) - 0.30" (8.4mm)
