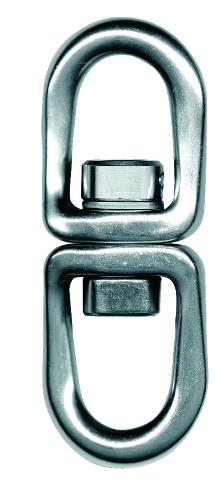

Tylaska 4 11/16" T20 Standard/Standard Bail Swivel

Item #

TY1220-SS

Product Description

Tylaska 4 11/16" T20 Standard/Standard Bail Swivel

Standard Bails provide ample room for attaching a line while keeping weight and overall shackle length to a minimum. Ideal for halyards and sheets.

Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.

Specifications

  • Shackle Type - T20 Std/Std Bail Swivel

  • Safe Working Load(lb.) - 10,000 (4,540kg)

  • Breaking Strength(lb.) - 20,000 (9,070kg)

  • Weight(oz.) - 9.9

    Dimensions

  • A(in.) - 0.99" (25.1mm)

  • B(in.) - 0.99" (25.1mm)

  • C(in.) - 4.44" (112.8mm)

  • D(in.) - 1.86" (47.2mm)

  • E(in.) - 1.86" (47.2mm)

  • F(in.) - 0.44" (11.2mm)

  • G(in.) - 0.44" (11.2mm)
