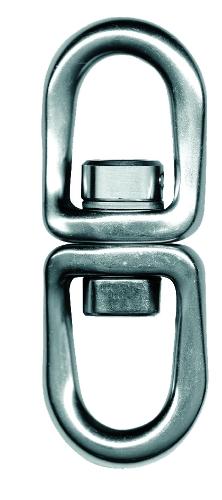

Tylaska 9 1/16" T50 Standard/Standard Bail Swivel

Item #

TY1250-SS

Product Description

Tylaska 9 1/16" T50 Standard/Standard Bail Swivel

Standard Bails provide ample room for attaching a line while keeping weight and overall shackle length to a minimum. Ideal for halyards and sheets.

Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.

Specifications

  • Shackle Type - T50 Std/Std Bail Swivel

  • Safe Working Load(lb.) - 25,000 (11,340kg)

  • Breaking Strength(lb.) - 50,000 (22,680kg)

  • Weight(oz.) - 93.0

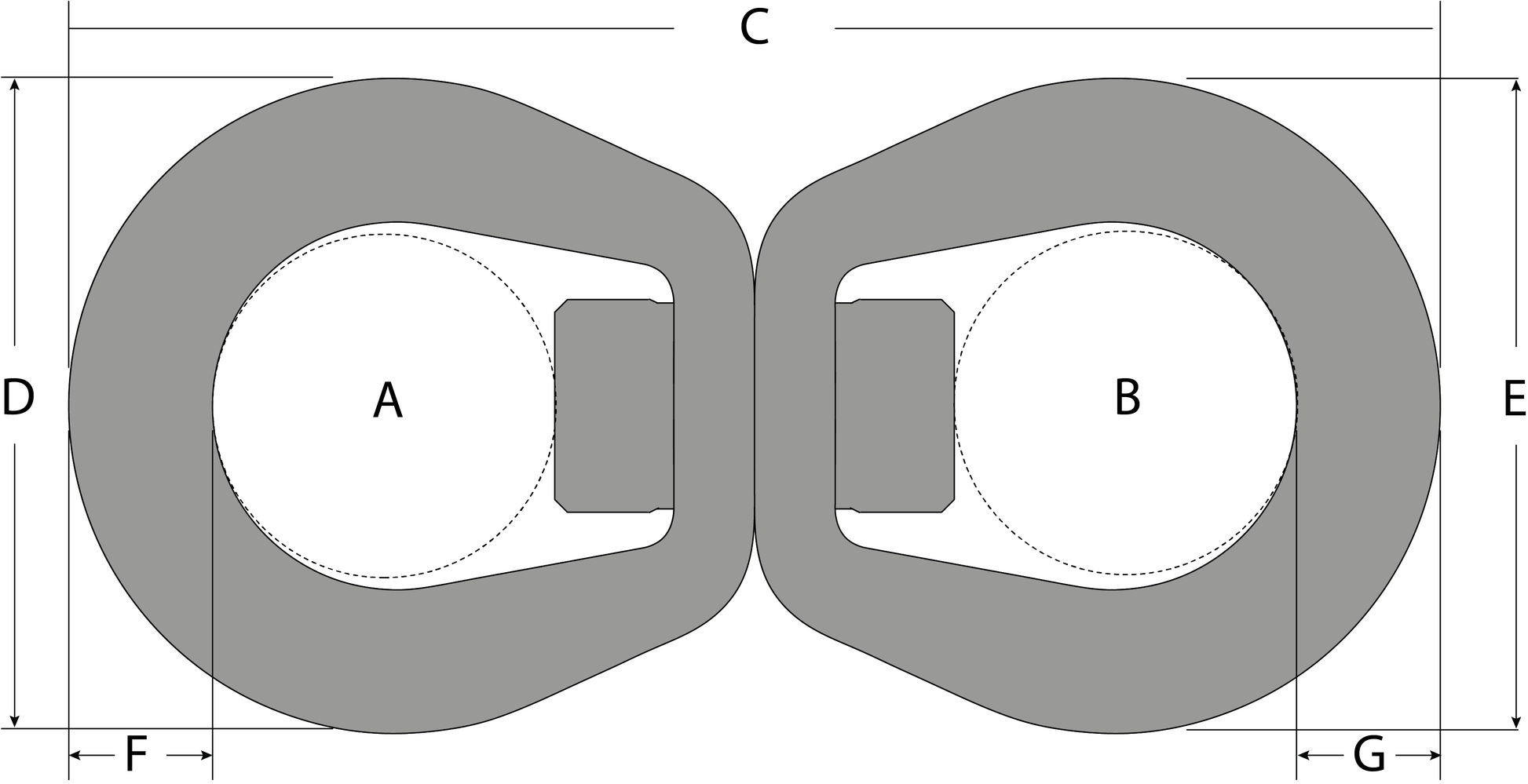

    Dimensions

  • A(in.) - 2.00" (50.8mm)

  • B(in.) - 2.00" (50.8mm)

  • C(in.) - 9.12" (231.7mm)

  • D(in.) - 3.65" (92.7mm)

  • E(in.) - 3.65" (92.7mm)

  • F(in.) - 0.83" (21.1mm)

  • G(in.) - 0.83" (21.1mm)
