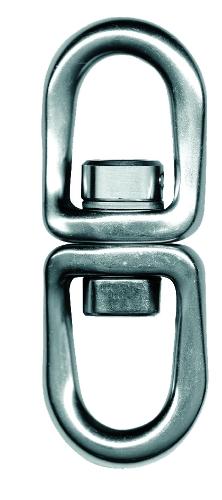

Tylaska 2 13/16" T8 Standard/Standard Bail Swivel

Item #

TY1208-SS

Product Description

Tylaska 2 13/16" T8 Standard/Standard Bail Swivel

Standard Bails provide ample room for attaching a line while keeping weight and overall shackle length to a minimum. Ideal for halyards and sheets.

Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.

Specifications

  • Shackle Type - T8 Std/Std Bail Swivel

  • Safe Working Load(lb.) - 4,000 (1,810kg)

  • Breaking Strength(lb.) - 8,000 (3,630kg)

  • Weight(oz.) - 3.0

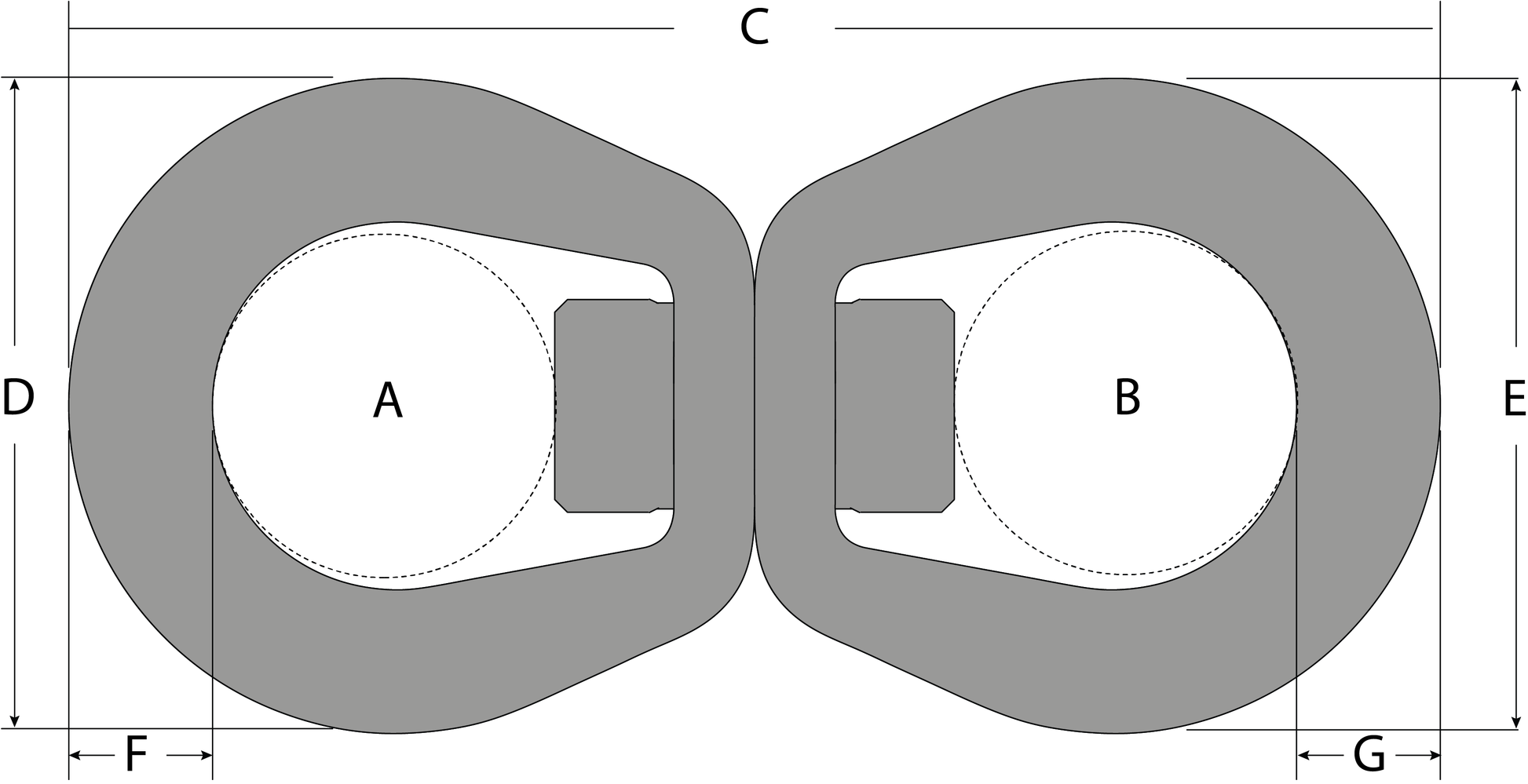

    Dimensions

  • A(in.) - 0.58" (14.7mm)

  • B(in.) - 0.58" (14.7mm)

  • C(in.) - 2.84" (72.1mm)

  • D(in.) - 1.19" (30.2mm)

  • E(in.) - 1.19" (30.2mm)

  • F(in.) - 0.28" (7.1mm)

  • G(in.) - 0.28" (7.1mm)
