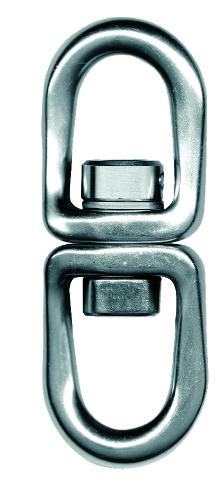

Tylaska 5 1/2" T30 Standard/Standard Bail Swivel

Tylaska 5 1/2" T30 Standard/Standard Bail Swivel

Standard Bails provide ample room for attaching a line while keeping weight and overall shackle length to a minimum. Ideal for halyards and sheets.

Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.

Specifications

Shackle Type - T30 Std/Std Bail Swivel

Safe Working Load(lb.) - 15,000 (6,800kg)

Breaking Strength(lb.) - 30,000 (13,610kg)

Weight(oz.) - 20.0

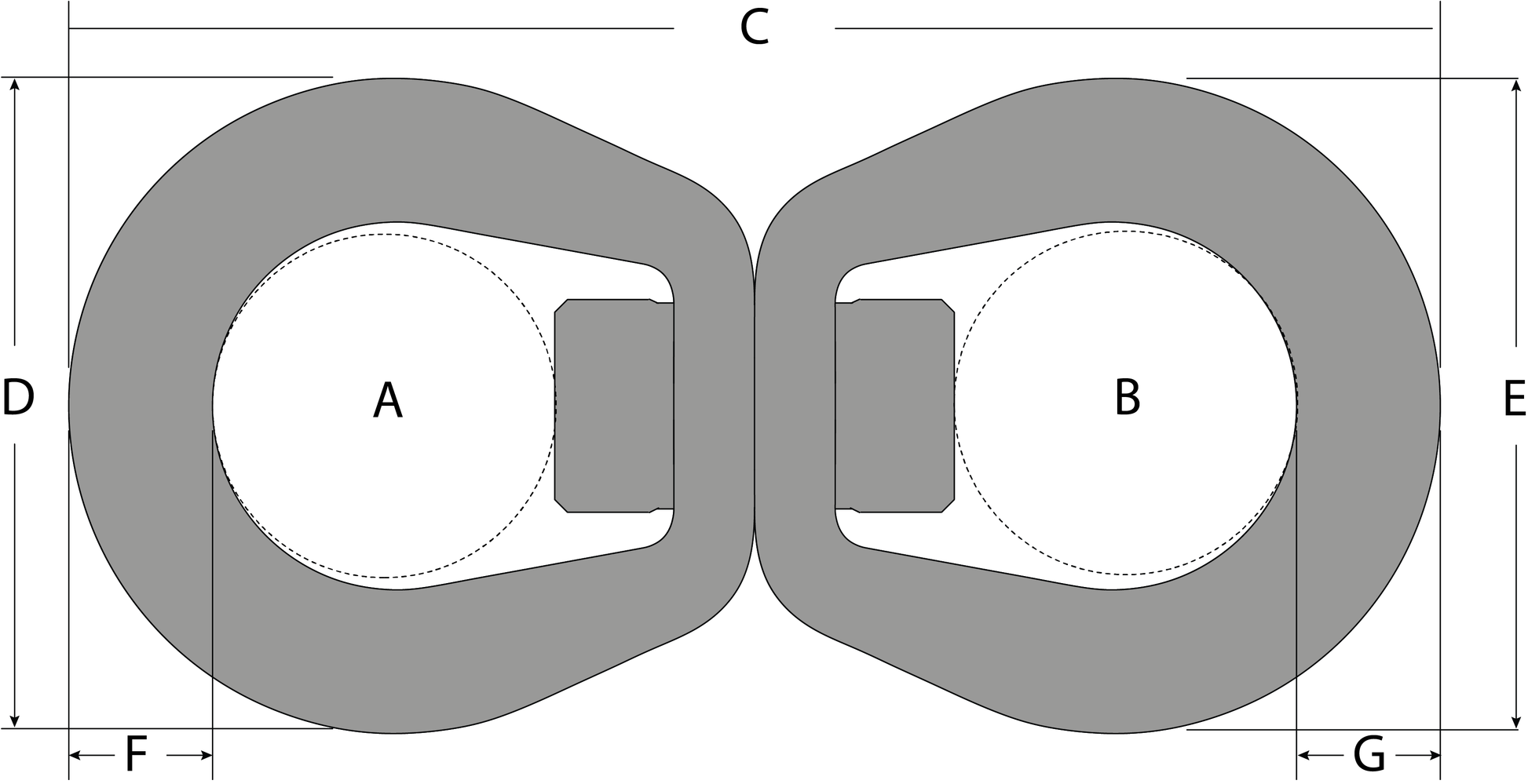

Dimensions

A(in.) - 1.20" (30.5mm)

B(in.) - 1.20" (30.5mm)

C(in.) - 5.54" (140.7mm)

D(in.) - 2.28" (57.9mm)

E(in.) - 2.28" (57.9mm)

F(in.) - 0.55" (26mm)

G(in.) - 0.55" (26mm)
