Harken Medium SS High-Load Round Padeye

Item #

648

Product Description

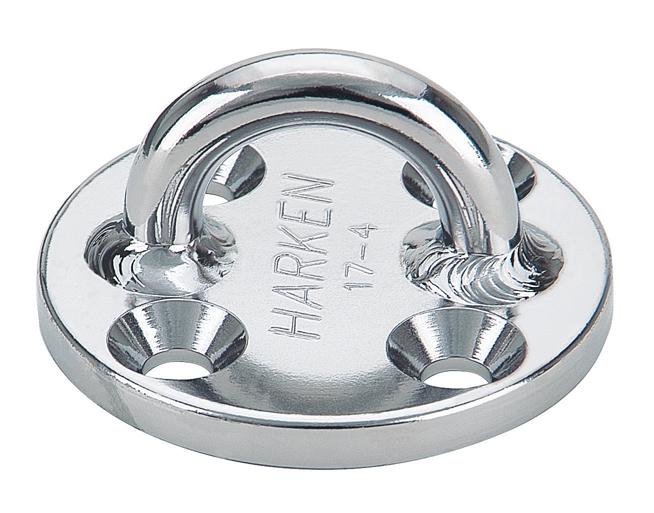

Harken Medium SS High-Load Round Padeye

Padeyes are great for mounting blocks and are also used as attachment points for staysails, reefing blocks, and hundreds of other items. The 627, 629, and 648 padeyes are 17-4 PH stainless.

Specifications:

  • A: 3 in. (76 mm)

  • C: 1 5/16 in. (33 mm)

  • D: 1 9/16 in. (40 mm)

  • E: 1 15/16 in. (50 mm)

  • F: 1 1/8 in. (29 mm)

  • G: 1 7/16 in. (37 mm)

  • Weight: 11 oz. (312 g)

  • Max. working load - angle 1: 11800 lbs. (5358 kg)

  • Max. working load - angle 2: 10375 lbs. (4705 kg)

  • Max. working load - angle 3: 8500 lbs. (3855 kg)

  • Breaking load - angle 1: 23600 lbs. (10716 kg)

  • Breaking load - angle 2: 20750 lbs. (9430 kg)

  • Breaking load - angle 3: 17000 lbs. (7710 kg)

  • Use 3/8 in. (10mm) FH fasteners
