Harken Large SS Round Padeye

Item #

629

Product Description

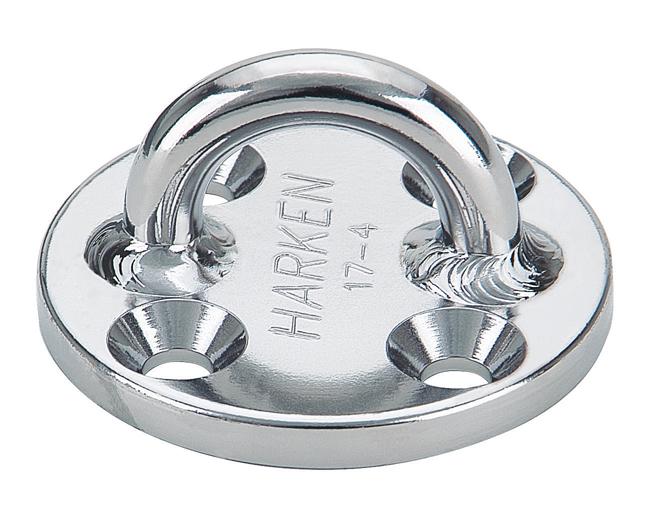

Harken Large SS Round Padeye

Padeyes are great for mounting blocks and are also used as attachment points for staysails, reefing blocks, and hundreds of other items. The 627, 629, and 648 padeyes are 17-4 PH stainless.

Specifications:

  • A: 3 3/4 in. (95 mm)

  • C: 1 3/4 in. (44 mm)

  • D: 1 7/8 in. (48 mm)

  • E: 2 in. (51 mm)

  • F: 1 1/16 in. (27 mm)

  • G: 1 3/4 in. (44 mm)

  • Weight: 23 oz. (652 g)

  • Max. working load - angle 1: 20000 lbs. (9070 kg)

  • Max. working load - angle 2: 12000 lbs. (5440 kg)

  • Max. working load - angle 3: 14000 lbs. (6350 kg)

  • Breaking load - angle 1: 40000 lbs. (18140 kg)

  • Breaking load - angle 2: 24000 lbs. (10890 kg)

  • Breaking load - angle 3: 28000 lbs. (12700 kg)

  • Use 1/2 in. (12mm) FH fasteners
