Wichard 5 1/8" Trigger Snap Swivel Eye

Item #

2656

Product Description

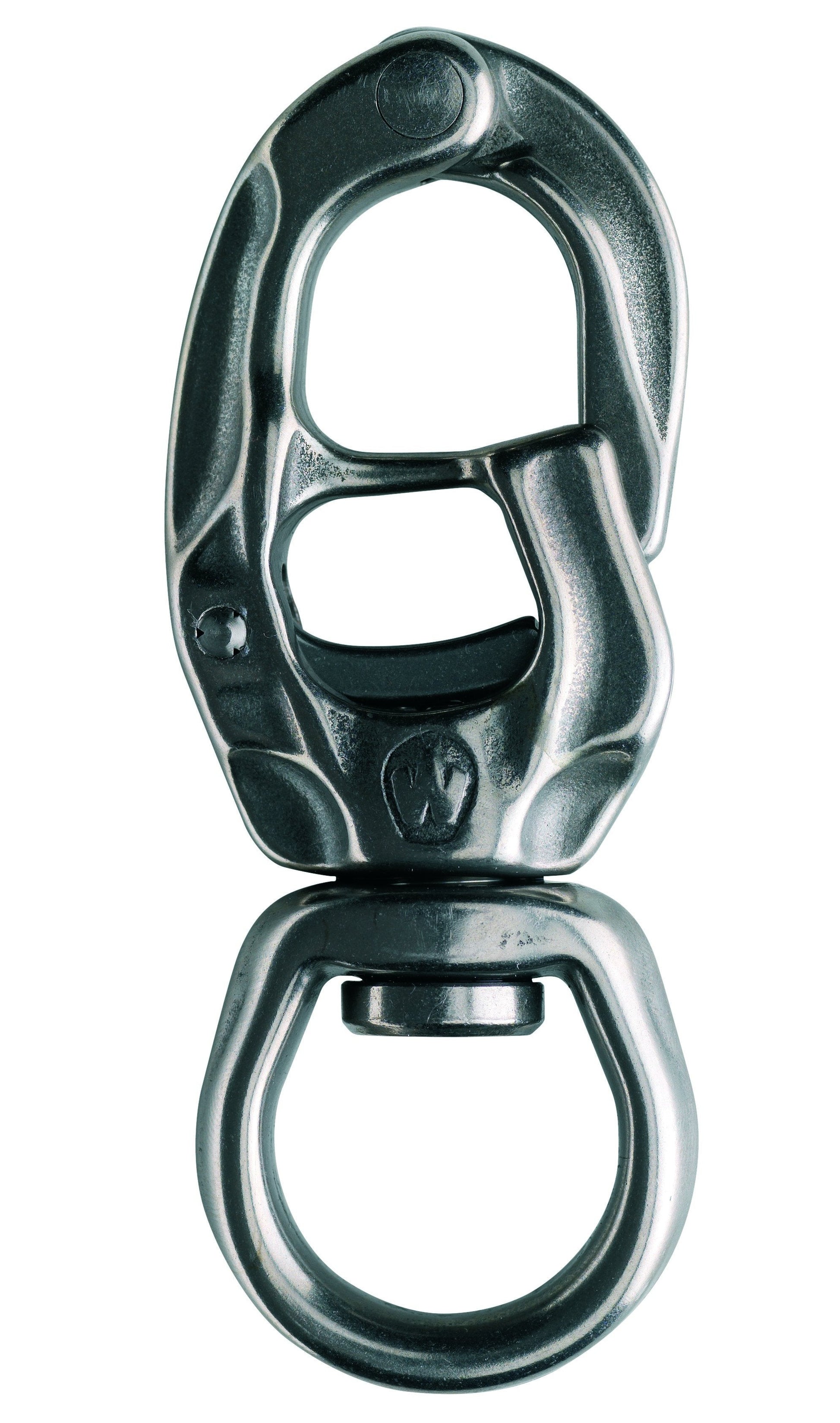

Wichard 5 1/8" Trigger Snap Swivel Eye

Speedlink is the new trigger snap shackle dedicated to spinnaker operations on racing boats and offering an excellent weight / performance ratio.

Ultra lightweight: developed by using finite element analysis software, Speedlink has an optimized design thanks to its shape, cut-outs and ribs. Its make it extremely design and gives its one of the best strength/weight ratios on the market.

Easy opening: opening under load, whether manually or using release fid, is easy and effortless thanks to the generous passage diameter and its optimized slopes.

No accidental opening: the special shape of the latch reduces inertia and avoids unintentional opening, especially under impact.

Sturdy: Speedlink is forged in HR stainless steel and can bear outstanding working and breaking loads for a minimum weight.

Modern design: its ultra-technical lines avoid excessive rope wear and prevent adjacent lines from jamming.

Features:

Weight: 11.5 oz. (326 g)

Length: 5 1/4" (134 mm)

Working load: 9170 lbs. (4160 Kg)

Breaking load: 19850 lbs. (9000 Kg)

A: 1 1/32" (26 mm)

B: 1 1/16" (27 mm)

Applications

  • Spinnaker operations: sheets, halyards, peeling

  • Can handle two sheets or one sheet and one trigger snap shackle

    Material

  • HR stainless steel 17.4 PH
