Product Description

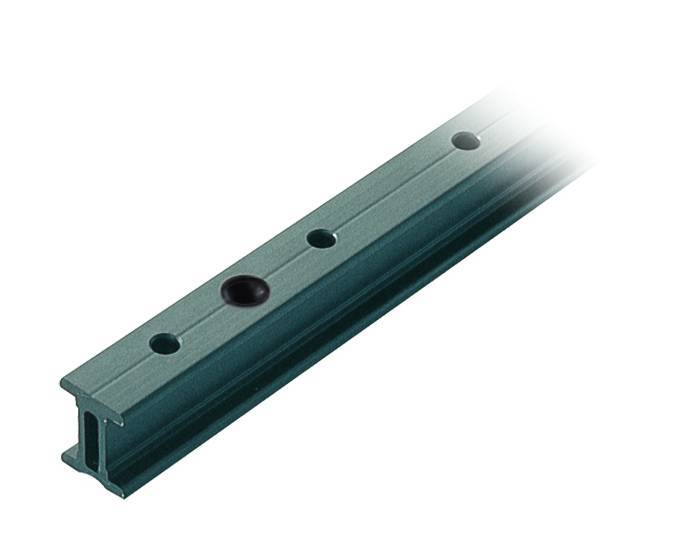

Ronstan Series 19 Track (over 3ft)
Features
Length - 39 1/4 (3.3ft) in.
Width - 3/4 in.
Weight - 29.3 oz.
Product Information
Track Fastenings - To suit 5mm (3/16") countersunk fasteners at 100mm (3.937") centers.
Stop Holes - 50mm (1 31/32") centers. Track is supplied with RC7250-INS insulating inserts to eliminate corrosion between track and fasteners
Minimum Curve Radius
For 51mm (2") car . Min horizontal 'A' curve radius = 400mm (15 3/4"). Min horizontal 'B' curve radius = 400mm (15 3/4").
For 86mm (3 3/8") car . Min horizontal 'A' curve radius = 1200mm (47 1/4"). Min horizontal 'B' curve radius = not suitable.
For 105mm (4 3/16") car . Min horizontal 'A' curve radius = 400mm (15 3/4"). Min horizontal 'B' curve radius = not suitable.
Applications
Mainsheet and self-tacking jib travelers on dinghies and catamarans
Mainsheet systems on boats to 9m (28ft)
Materials
Anodized aluminum alloy
