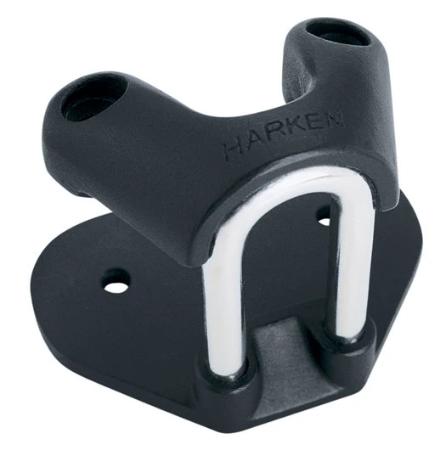

Harken X-Treme Angle Cam Fairlead for 150

The X-Treme Angle Fairlead allows releasing and recleating at angles up to 90° to the cleat. This sets it apart from other fairleads where line uncleats at extreme angles and can’t recleat without centering the line.

Specifications:

Height above cam: 15/16 in. (24 mm)

Height: 2 1/4 in. (57 mm)

Length: 1 13/16 in. (46 mm)

Width: 2 9/16 in. (65 mm)

Weight: 1.92 oz. (56 g)

Maximum line Ø: 3/8 in. (10 mm)

Fastener spacing: 1 1/2 in. (38 mm)

Fits: 150, 365

Drawing - DWG: 375.dwg (open/save)

Drawing - DXF: 375.dxf (open/save)

3D drawing - IGS: 375.igs (open/save)

Photo - EPS: 375.eps.zip (open/save)
