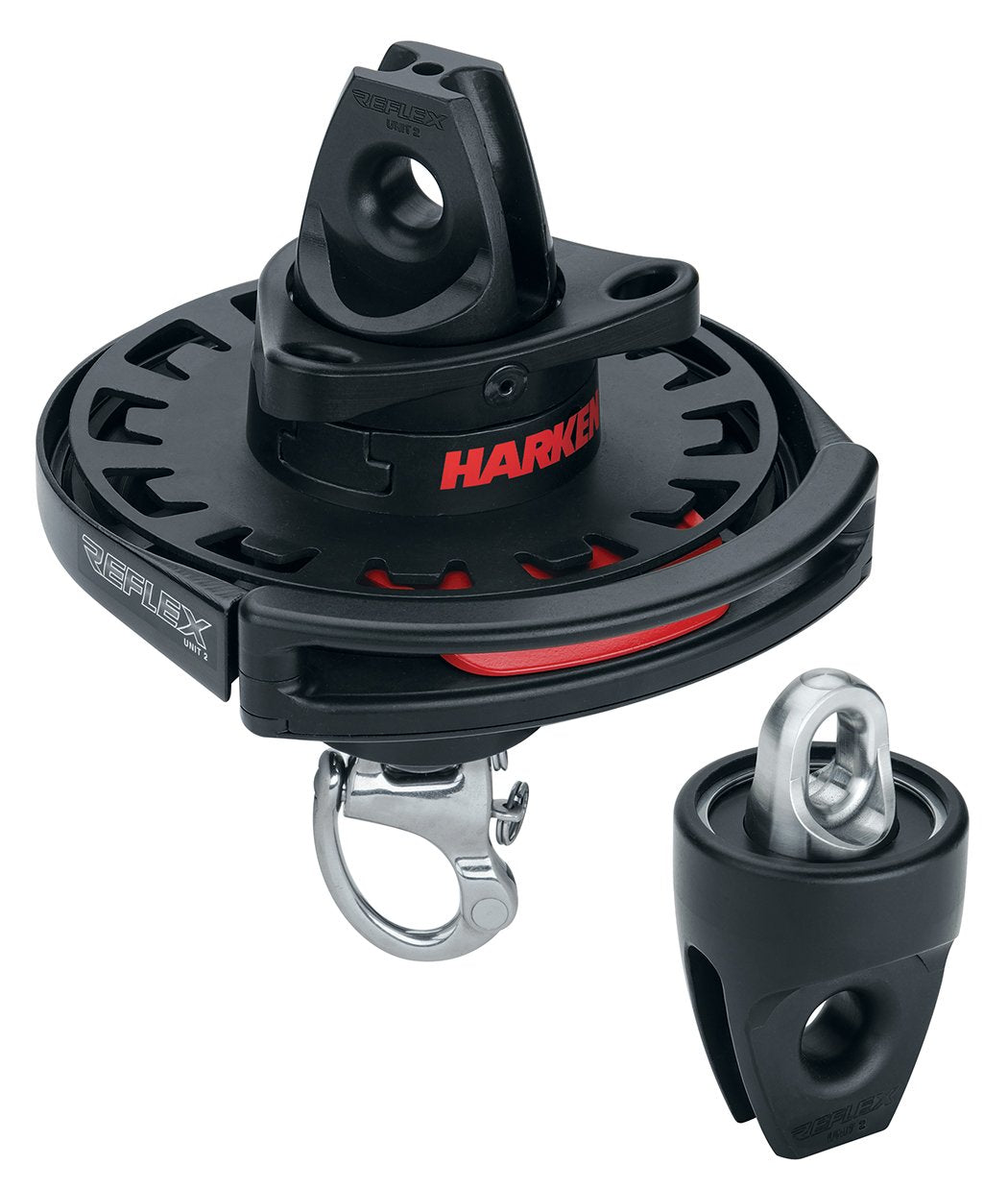

Harken Unit 2 Reflex Furling System - Asymmetric Spinnaker, 25m CableSail type: Asymmetric spinnaker
The Harken Reflex furling system is a game changer! The previous generation of free-flying sail furlers often resulted in partial or uneven furling. Patent-pending Harken Reflex furlers provide sailors confidence that their free-flying spinnakers and gennakers will furl with speed and control. The result? Sailors use downwind sails more often—even when sailing shorthanded. The compact drive unit is easier to handle than other designs. Pull the furling line and the drive unit reacts reflexively to rotate the torsion cable, immediately transferring torque to the head swivel without unwanted corkscrewing delaying the response. The head swivel reacts instantly, spinning the sail smoothly and completely from top to bottom for an even roll-up and super-tight wrap. The furled spinnaker lowers easily to the deck, ready for the next hoist.
The Reflex cable is more torsionally resistant to corkscrewing than the current breed of textile cable. Braided stainless steel wire filaments over braided polyester core transmit torque to head swivel through both tension and compression for faster furling (textile cable transmits through tension only).
The quick-release modular T-fitting allows a single drive unit to handle multiple sails.
Maximum sail area: 1800 ft² (168m²)
Cable length: 82 ft. (25 m)
Line Ø: 5/16 in. (8 mm)
Maximum working load: 5500 lbs. (2500 kg)
Includes: Drive unit, head swivel, Reflex tack swivel terminal, snap shackle threaded adapter, Reflex torsion cable, and clamps
DO NOT use Harken equipment for human suspension unless product is specifically certified and labeled for such use.
