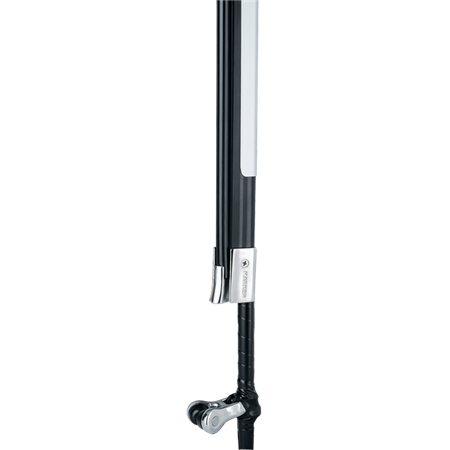

Harken Unit 1 Carbo Foil Set - 20 m

Item #

7001.20m

Product Description

Harken Carbo Racing foil

The low-friction twin headsail grooves are ultra-smooth, allowing hoists, douses, and headsail changes to be easily and efficiently executed. The engineering resins in these strong, lightweight head foils offer significant advancements over the weaker PVC materials used by other manufacturers. Impact resistance is unmatched, with far less foil damage from loaded spinnaker poles, especially in cold weather. Heat has little effect on stiffness.

Specifications:

  • Maximum wire Ø: 5/16 in. (8 mm)

  • Maximum rod Ø: -17 (8.38 mm)

  • Extrusion length: 65' 7" (20 m)

  • Maximum headstay length: 69' 7" (21.2 m)

  • Spacer tube length: 3' 3" (1 m)

  • Extrusion weight: 0.162 lb/ft (0.241 kg/m)

  • Full system weight (kg)

  • Full system weight: 11.25 lbs. (5.1 kg)

  • Luff tape size: #6 (6/32) in. (5 mm)
