Harken Triple 12mm Bolt-Down Fairlead

Item #

3276

Product Description

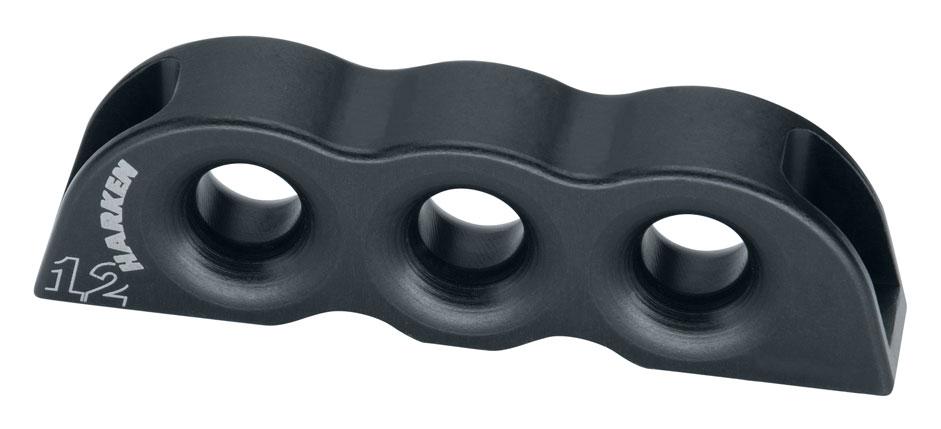

Harken Triple 12mm Bolt-Down Fairlead

Harken Bolt-Down Fairleads are used on boats 6–15 m (20–50 ft) as shallow-angle line deflectors. These weight-saving fairleads are built of 6061-T6 Hard Lube-anodized aluminum for durability. Smooth surfaces and radiused center holes minimize line wear.

Specifications:

  • Length: 3 7/8 in. (99 mm)

  • Width: 11/16 in. (18 mm)

  • Height: 1 1/8 in. (28.2 mm)

  • Maximum line Ø: 3/8 in. (10 mm)

  • Center hole Ø: 15/32 in. (12 mm)

  • Weight: 2.43 oz. (69 g)

  • Fasteners: 1/4 SH in. (6 CH, 6 HH, 6 SH mm)

  • Maximum working load: 2000 lbs. (908 kg)

  • Breaking load: 4000 lbs. (1816 kg)

  • Drawing - DWG: 3276.dwg (open/save)
    Drawing - DXF: 3276.dxf (open/save)
    3D drawing - IGS: 3276.igs (open/save)
    Photo - EPS: 3276.eps (open/save)
    Photo - JPG: 3276.jpg (open/save)
