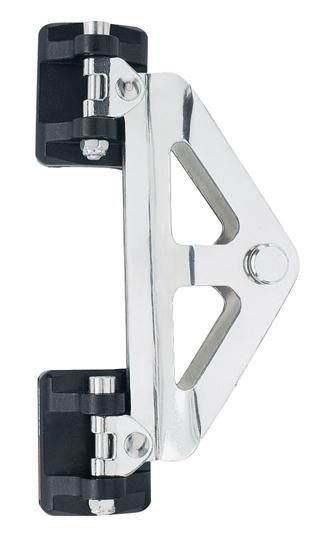

Harken System A Headboard Slider Car Assembly

Item #

3827

Product Description

Harken System A Headboard Slider Car Assembly

A Harken® Battcar system along with full-length battens helps raise, douse, and reef with ease and acts as extra crew if you’re sailing shorthanded. Battcar systems outperform in-mast or in-boom furling, cost less, and you don’t need to recut your sail. Slider Battcars offer a lightweight, cost effective way to raise, reef, and douse mainsails. Hardcoat-anodized aluminum cars slide on low-friction plastic inserts. The compact car size translates into reduced weight and stack height.

Specifications:

  • Length: 6 in. (153 mm)

  • Weight: 10 oz. (269 g)

  • Width: 1 3/8 in. (35 mm)

  • Max. working load: 1600 lbs. (725 kg)

  • Maximum headboard thickness: 9/16 in. (14 mm)

  • Maximum sail area - monohull: 600 ft² (56 m²)

  • Maximum sail area - multihull: 500 ft² (46 m²)

  • A: 6 in. (153 mm)

  • B: 1 1/16 in. (27 mm)

  • C: 2 1/8 in. (54 mm)

  • D: 3 11/16 in. (94 mm)

  • E: 3/16 in. (5 mm)
