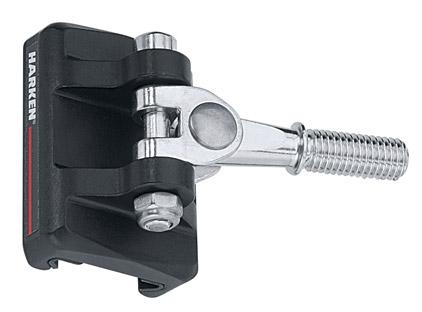

Harken System B Slider Battcar w/ 10mm Stud

A Harken® Battcar system along with full-length battens helps raise, douse, and reef with ease and acts as extra crew if you’re sailing shorthanded. Battcar systems outperform in-mast or in-boom furling, cost less, and you don’t need to recut your sail. Slider Battcars offer a lightweight, cost effective way to raise, reef, and douse mainsails. Hardcoat-anodized aluminum cars slide on low-friction plastic inserts. The compact car size translates into reduced weight and stack height.

Specifications:

Length: 2 3/16 in. (56 mm)

Weight: 4.5 oz. (128 g)

Width: 1 11/16 in. (42 mm)

Max. working load: 1260 lbs. (571 kg)

Batten receptacle not included

Manual: System B CB and Slider Battcars: Built 2007 to Present (4286.pdf ) (open/save)

Manual: System B CB and Slider Battcars: Built 2005 to 2006 (4252.pdf ) (open/save)

Manual: System B CB and Slider Battcars Parts List: Built 2007 to Present (4286_partslist.pdf ) (open/save)

Manual: System B CB and Slider Battcars Parts List: Built 2005 to 2006 (4252_partslist.pdf ) (open/save)

Drawing - DWG: 3834.dwg (open/save)

Drawing - DXF: 3834.dxf (open/save)
