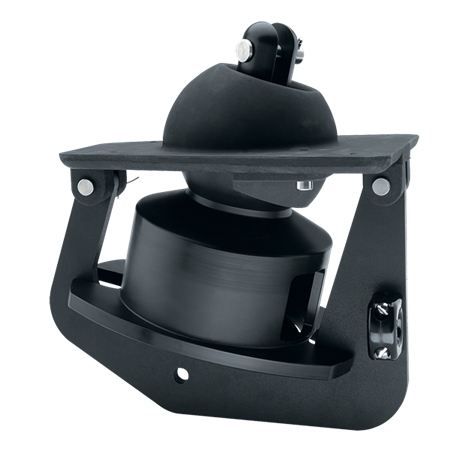

Harken Small Boat Under-Deck Furling System - Large

Harken Small Boat Under-Deck Furling System - Large

Small Boat underdeck furling units are ideal for sportboats and daysailers from 4.8 m to 9 m (16 to 30 ft). The drum is located beneath the deck, lowering the tack height for maximized sail area. An optional hoistable ball bearing halyard swivel can be installed on your headstay so you can raise or lower the sail without removing the headstay. Swivels are independent of the headstay, allowing you to tension the luff separately from the mast rake.

Specifications:

Pin to Pin Length: 10 7/32 in. (260 mm)

Drum Ø: 5 in. (127 mm)

Minimum Line Ø: 3/16 in. (5 mm)

Maximum Line Ø: 1/4 in. (6 mm)

Jaw Width: 1/2 in.(12 mm)

Max Luff Wire Ø: 1/4 in.(6 mm)

Clevis Pin Ø: 7/16 in. (11 mm)

Weight: 96 oz. (2721 g)

Maximum Working Load: 3000 lbs. (1361 kg)
