Harken Small Boat Furler Kit w/Hoistable Halyard SwivelPin Hole to Pin Hole: 2 1/2" (64 mm)
Harken® Small Boat furling systems allow the trailerable cruising or dinghy sailor to set and furl the jib from the cockpit. Drums and halyard swivels feature multiple stacked races of Delrin® or Torlon® bearings for smooth rotation under load. Small Boat units are for furling only, not reefing.
An optional hoistable ball bearing halyard swivel can be installed on your headstay so you can raise or lower the sail without removing the headstay. Swivels are independent of the headstay, allowing you to tension the luff separately from the mast rake. Hoistable swivels work along with your standard Harken Small Boat furler.
Drum Ø: 2 7/8" (73 mm)
Maximum Line Ø: 5/32" (4 mm)
Jaw Width: 5/16" (8 mm)
Max Luff Wire Ø: 5/32" (4 mm)
Clevis Pin Ø: 1/4" (6 mm)
Weight: 11.2 oz (318 g)
Maximum Working Load: 950 lb (431 kg)
Boat length - monohull: 16-20 ft. (4.9-6.1 m)
Boat length - multihull: to 18 ft. (to 5.5 m)

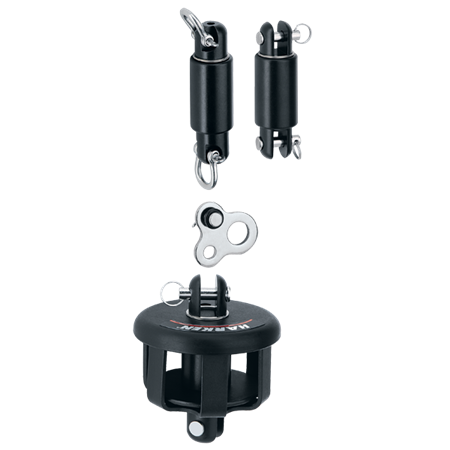

Includes: upper swivel (164), hoistable swivel (464), and drum (165)
