Harken Small Boat Cruising Furling System

Item #

436

Product Description

Harken Small Boat Cruising Furling System

Harken® Small Boat furling systems allow the trailerable cruising or dinghy sailor to set and furl the jib from the cockpit. An optional hoistable ball bearing halyard swivel can be installed on your headstay so you can raise or lower the sail without removing the headstay. Swivels are independent of the headstay, allowing you to tension the luff separately from the mast rake.

Specifications:

  • Pin-to-pin length: 4 in. (102 mm)

  • Drum Ø: 4 3/16 in. (106 mm)

  • Maximum Line Ø: 1/4 in. (6 mm)

  • Jaw width: 3/8 in. (10 mm)

  • Max. luff wire Ø: 3/16 in. (5 mm)

  • Clevis pin Ø: 5/16 in. (7.9 mm)

  • Weight: 22.8 oz. (646 g)

  • Max. working load: 2000 lbs. (907 kg)

  • Boat length - monohull: 20-25 ft. (6.1-7.6 m)

  • Boat length - multihull: 18-23 ft. (5.5-7 m)

  • Includes: Drum (208) and upper swivel (207)

  • Drawing - DWG: 436.dwg (open/save)
    Drawing - DXF: 436.dxf (open/save)
    3D drawing - IGS: 436.igs (open/save)
    Photo - EPS: 436.eps (open/save)

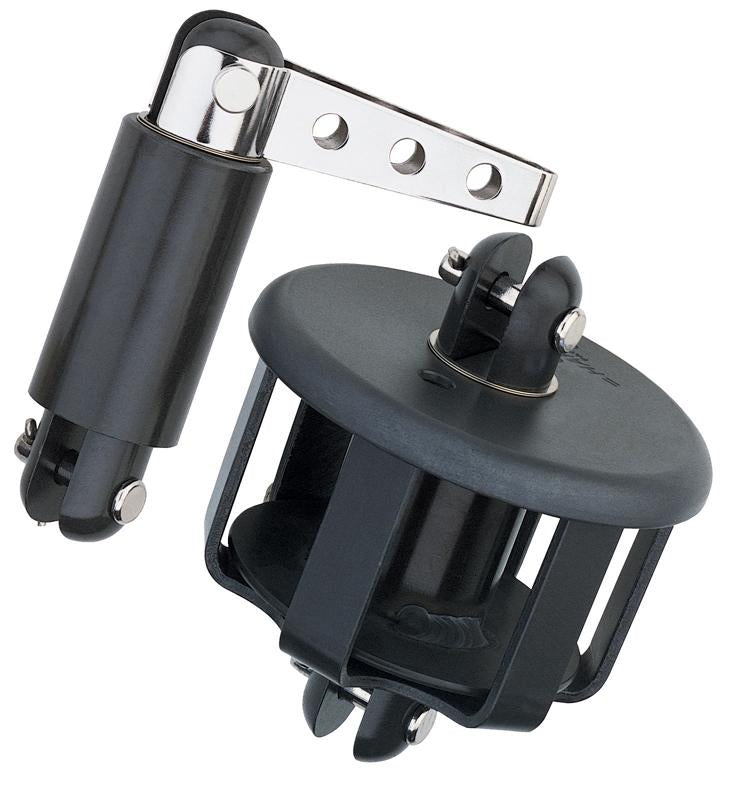

    Photo - JPG: 436.jpg (open/save)
