Harken Small Boat Continuous Line-Drive Furler

Item #


Product Description

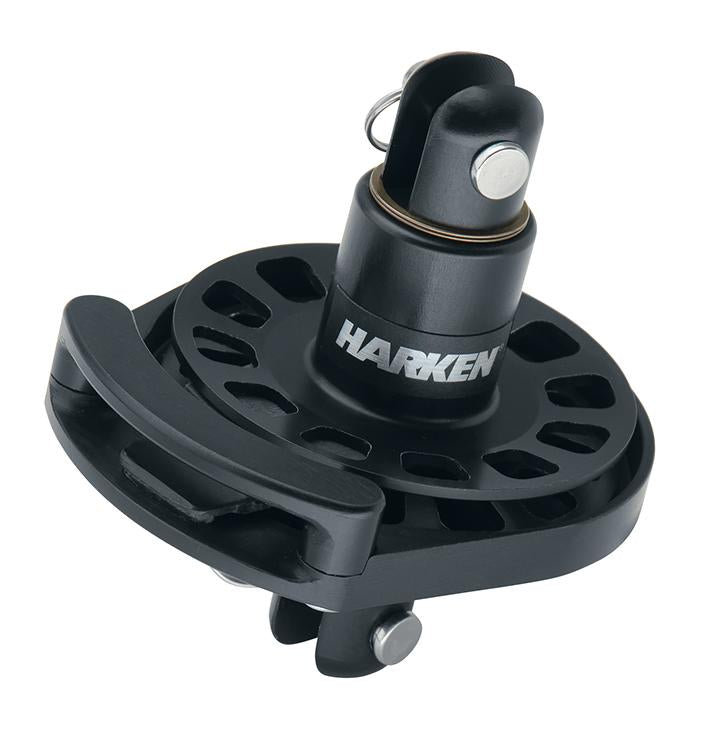

Harken Small Boat Continuous Line-Drive Furler

The continuous line-drive furler is the perfect solution for high-performance skiffs and dinghies that use oversized jibs/gennakers and for staysails on larger boats. Unlike conventional furling drums, the low-profile line-driver never runs out of line, and can completely furl any sized sail. Offset holes in the drive sheave grip line securely, with the stripper arm and feeder working together to prevent line from jamming. The line guard adjusts in 90-degree increments to accommodate attachments to the boat.


  • Pin-to-pin length: 2 11/16 in. (68 mm)

  • Drum Ø: 2 7/8 in. (73 mm)

  • Maximum line Ø: 3/16 in. (5 mm)

  • Jaw width: 5/16 in. (8 mm)

  • Maximum luff wire Ø: 1/8 in. (3 mm)

  • Clevis pin Ø: 1/4 in. (6.4 mm)

  • Weight: 5.4 oz (154 g)

  • Maximum working load: 950 lbs. (431 kg)

  • Use with: 164

    *DO NOT use Harken equipment for human suspension unless product is specifically certified and labeled for such use.

  • Drawing - DWG: 1134.dwg (open/save)
    Drawing - DXF: 1134.dxf (open/save)
    3D drawing - IGS: 1134.igs (open/save)
    Photo - EPS: 1134.eps (open/save)
    Photo - JPG: 1134.jpg (open/save)
