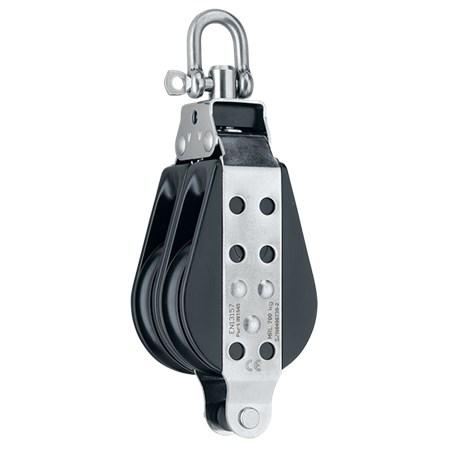

Harken 76mm Classic Double Pulley - Swivel, Becket

Item #

IN1545

Product Description

Harken 76mm Classic Double Pulley - Swivel, Becket

These robust pulleys are ideal for handling high loads. Free-running Delrin® ball bearings roll on flat races to allow fast haul and release under high or low loads. Pulley shackle locks in two directions or swivels to keep rope from twisting. The simple construction requires no lubrication. Simply flush with fresh water to keep bearings free rolling. CE certified. Delrin is a registered trademark of E. I. du Pont de Nemours and Company or its affiliates.

Features:

- These robust pulleys are ideal for handling high loads. Free-running Delrin® ball bearings roll on flat races to allow fast haul and release under high or low loads. Metal and composite construction.

- Pulley shackle locks in two directions or swivels to keep rope from twisting.



Specifications:

  • Sheave Diameter: 3 in. (76 mm)

  • Length: 8 1/2 in. (216 mm)

  • Weight: 1.65 lb. (751 g)

  • Shackle pin Ø: 5/16 in (8 mm)

  • Maximum Line Ø: 9/16 in. (14 mm)

  • Maximum Rated Load : 1,573 lb (7 kN)

  • Downloads:

    Click here for Product Manual

    Click here for Product Data Sheet

    CE certified to EN13157 for hand-operated lifting equipment.
