Harken 27 mm Trolley with 6x Tapped Holes

Item #

IN1625

Product Description

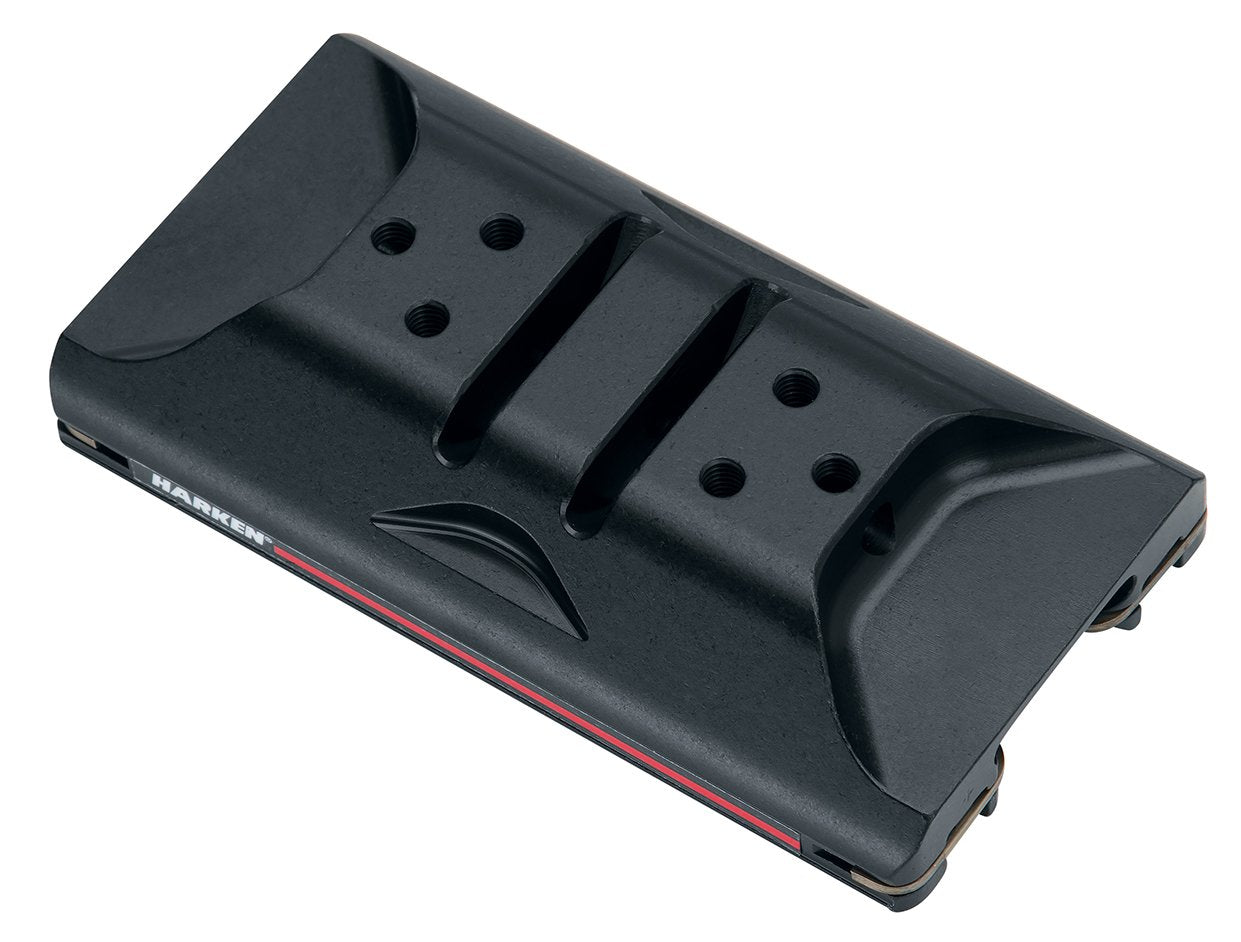

Harken 27 mm Trolley with 6x Tapped Holes

Trolleys feature recirculating ball bearings housed in strong, lightweight, corrosion-resistant aluminum for dependable, low-friction linear travel. Use for seat rail systems, window-washing apparatus, hoisting and moving stage equipment, and material handling. With 6x tapped holes.

Specifications:

Length: 5 3/16 in. (132 mm)

Width: 2 3/4 in. (70 mm)

Height: 1 1/16 in. (28 mm)

Weight: 10.4 oz. (294 g)

Max. Rated load (kN): 5.6 kN

Breaking load (kN): 22.2 kN

Minimum curved track radius: 9 ft. (2.73 m)
