Harken 22mm Trolley with 2x M6 Tapped Holes

Item #

IN8418

$93.33 $109.80 You Save 15% ($16.47)

Usually ships within 1-3 days

Description

Product Description

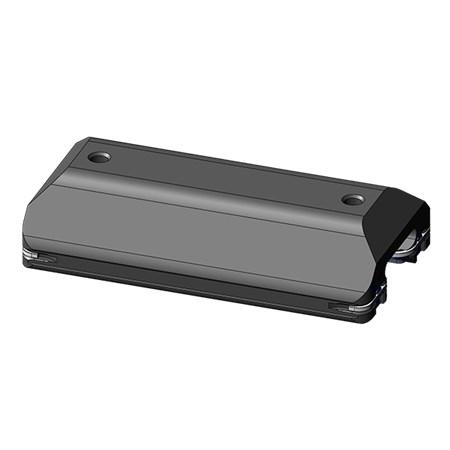

Harken 22mm Trolley with 2x M6 Tapped Holes

Trolleys feature recirculating ball bearings housed in strong, lightweight, corrosion-resistant aluminum for dependable, low-friction linear travel. Use for seat rail systems, window-washing apparatus, hoisting and moving stage equipment, and material handling. With 2x M6 tapped holes on top.

Specifications:

Length: 4 1/8 in. (105 mm)

Width: 2 1/4 in. (57 mm)

Height: 15/16 in. (24 mm)

Weight: 19.86 oz. (563 g)

Max. Rated load (kN): 2.8 kN

Breaking load (kN): 11.1 kN

Minimum curved track radius: 6.67 ft (2.03 m)

Downloads:

Click here for Product Data Sheet

Click here for Product Drawing
