Harken 22mm Trolley with 2x 1/4-20 Tapped Holes and Central Threaded Pinstop

Item #

IN8306

Product Description

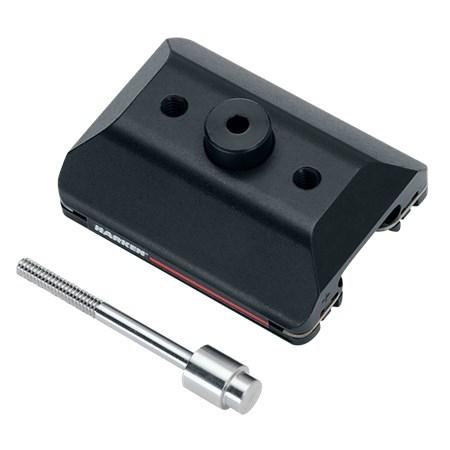

Harken 22mm Trolley with 2x 1/4-20 Tapped Holes and Central Threaded Pinstop

Trolleys feature recirculating ball bearings housed in strong, lightweight, corrosion-resistant aluminum for dependable, low-friction linear travel. Use for seat rail systems, window-washing apparatus, hoisting and moving stage equipment, and material handling. With 2x 1/4-20 tapped holes and central threaded pinstop, which when closed, locks the trolley in place.

Specifications:

Length: 2 7/8 in. (73 mm)

Width: 2 1/4 in. (57 mm)

Height: 2 15/16 in. (75 mm)

Weight: 5.19 oz. (147 g)

Max. Rated load (kN): 2.8 kN

Breaking load (kN): 11.1 kN

Minimum curved track radius:  3.5 ft (1.07 m)
