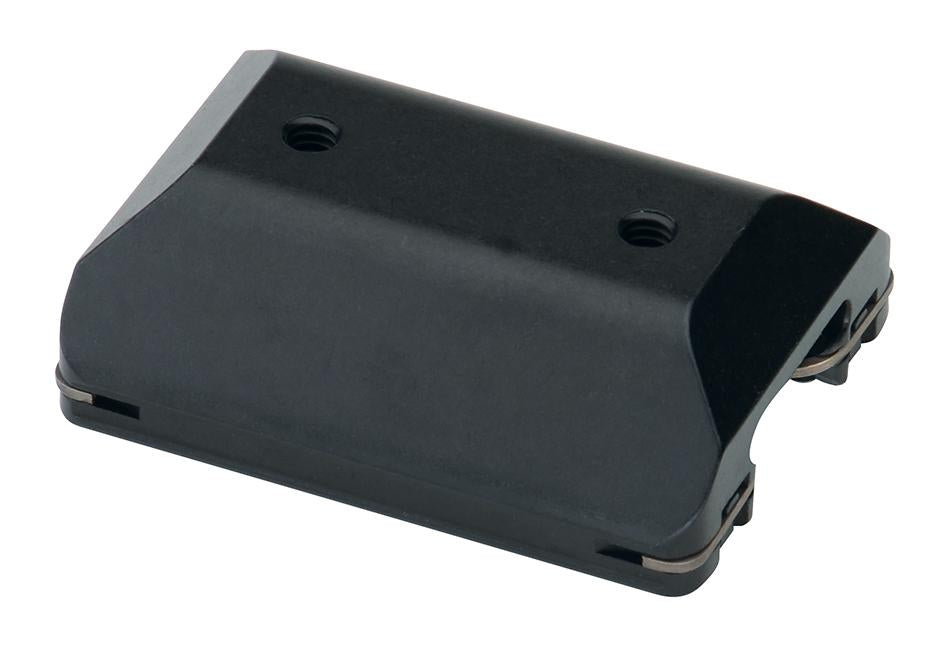

Harken 22mm Trolley with 2x 1/4-20 Tapped Holes

Harken 22mm Trolley with 2x 1/4-20 Tapped Holes

Trolleys feature recirculating ball bearings housed in strong, lightweight, corrosion-resistant aluminum for dependable, low-friction linear travel. Use for seat rail systems, window-washing apparatus, hoisting and moving stage equipment, and material handling. 2 x 1/4" holes on top.

Specifications:

Length: 2 7/8 in. (73 mm)

Width: 2 1/4 in. (57 mm)

Height: 15/16 in. (24 mm)

Weight: 13.54 oz. (384 g)

Max. Rated load (kN): 2.2 kN

Breaking load (kN): 8.9 kN

Minimum curved track radius:  3.5ft (1.07m)
