Harken 22mm High-Load Trolley with 2x M8 Tapped Holes

Item #

IN8473.HL

Product Description

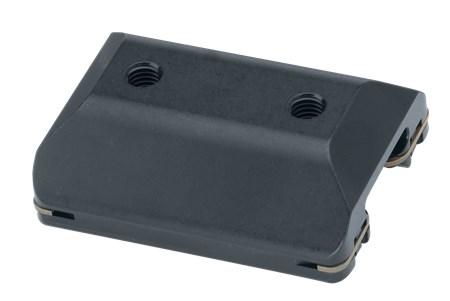

Harken 22mm High-Load Trolley with 2x M8 Tapped Holes

Trolleys feature recirculating ball bearings housed in strong, lightweight, corrosion-resistant aluminum for dependable, low-friction linear travel. Use for seat rail systems, window-washing apparatus, hoisting and moving stage equipment, and material handling. High load with M8 holes on top.

Specifications:

Length: 2 7/8 in. (73 mm)

Width: 2 1/4 in. (57 mm)

Height: 15/16 in. (24 mm)

Weight: 13.42 oz. (380 g)

Max. Rated load (kN): 2.8 kN

Breaking load (kN): 11.1 kN

Minimum curved track radius:  3.5 ft (1.07 m)


Downloads:
