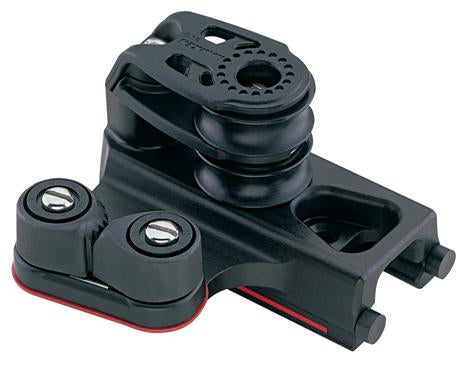

Harken Mid-Range Double Control w/ Cam Set

Item #

1633

Product Description

Harken Mid-Range Double Control w/ Cam Set

High-performance end controls allow the installation of 2:1 to 4:1 purchases. Designed for high-performance, free-running systems, Carbo control blocks with Delrin® ball bearings let cars instantly adjust and release under load. Assemblies secure to track, eliminating additional holes. Tough one-piece bases and cam arms are machined from a single piece of aluminum. Compact, low-friction block components combined with Carbo-Cam cleats keep weight minimal.

Delrin is a registered trademark of E. I. du Pont de Nemours and Company or its affiliates.

Specifications:

  • Sheave Ø: 1 9/16 in. (40 mm)

  • Length: 4 1/2 in. (114 mm)

  • Weight for pair: 36 oz. (1020 g)

  • Max. line Ø: 3/8 in. (10 mm)

  • Height above track: 2 in. (51 mm)

  • Max. working load: 600 lbs. (272 kg)

  • Breaking load: 1500 lbs. (680 kg)

  • Purchase: 3:1 / 4:1

  • Includes 5/16 in. (8mm) RH fasteners

  • Drawing - DWG: 1633.dwg (open/save)
    Drawing - DXF: 1633.dxf (open/save)
    3D drawing - IGS: 1633.igs (open/save)
    Photo - EPS: 1633.eps (open/save)
    Photo - JPG: 1633.jpg (open/save)
