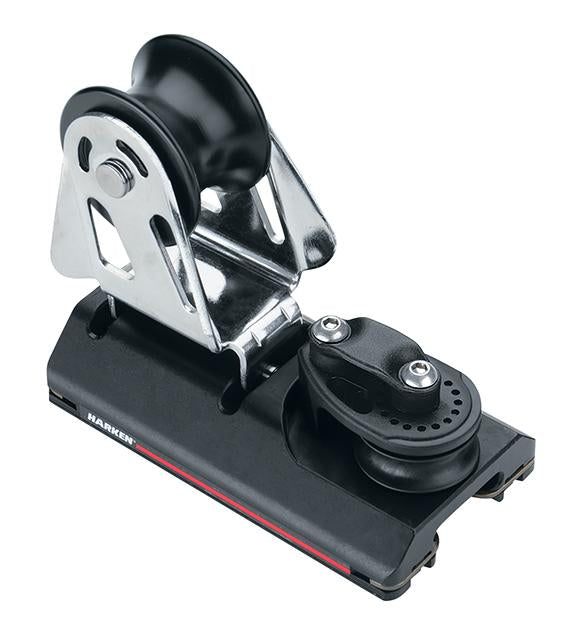

Harken Midrange 3:1 CB Genoa Lead Car w/Sheave and Dead End

Harken Midrange 3:1 CB Genoa Lead Car w/Sheave and Dead End

CB adjustable genoa lead cars feature recirculating Torlon® ball bearings for easy adjustment under full sheet loads. Stainless steel sheave carriers pivot 60 degrees to accommodate changing lead angles.

Torlon is a registered trademark of Solvay Advanced Polymers L.L.C.

Specifications:

Sheave Dia.: 2 1/4 in. (57 mm)

Length: 5 3/16 in.(132 mm)

Width: 2 3/4 in. (70 mm)

Weight: 24.06 oz. (682 g)

Maximum Working Load: 2300 lbs. (1043 kg)

Breaking Load: 5000 lbs. (2268 kg)

Use with track/rail: R27
