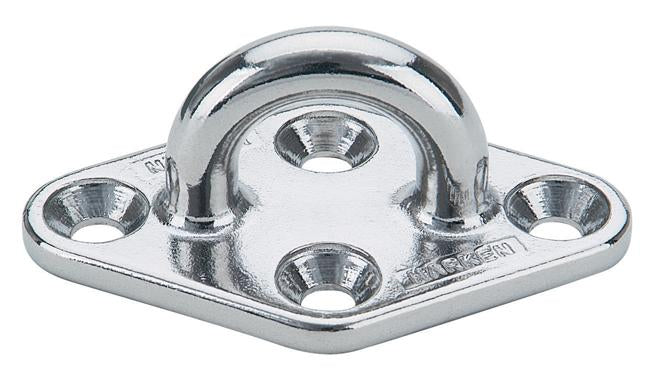

Harken Large SS Diamond Padeye

Harken Large SS Diamond Padeye

Padeyes are great for mounting blocks and are also used as attachment points for staysails, reefing blocks, and hundreds of other items. Harken® offers a range of stainless steel padeyes. The diamond-shaped padeyes, 688 and 689, are 316 stainless and often used at mastbases where the diamond shape allows them to be mounted very close together.

Specifications:

A: 3 7/8 in. (98 mm)

B: 2 5/16 in. (59 mm)

C: 2 7/8 in. (73 mm)

D: 1 3/8 in. (35 mm)

E: 1 9/16 in. (40 mm)

F: 7/8 in. (22 mm)

G: 1 1/16 in. (27 mm)

Weight: 7.5 oz. (213 g)

Max. working load - angle 1: 8500 lbs. (3855 kg)

Max. working load - angle 2: 8000 lbs. (3628 kg)

Max. working load - angle 3: 7800 lbs. (3540 kg)

Breaking load - angle 1: 19000 lbs. (8618 kg)

Breaking load - angle 2: 17200 lbs. (7800 kg)

Breaking load - angle 3: 15600 lbs. (7075 kg)

Fasteners: 5/16 in. (8mm) FH
