Harken Big Boat Single Sheave Traveler Control Set

Item #

3168

$460.95 $523.55 You Save 11% ($62.60)

Usually ships within 1-3 days

Description
Downloads & Resources

Product Description

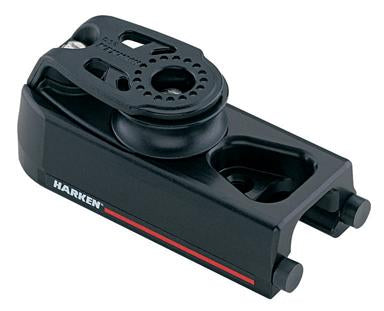

Harken Big Boat Single Sheave Traveler Control Set

High-performance end controls allow the installation of 2:1 to 6:1 purchases. Designed for high-performance, free-running systems, Carbo control blocks with Delrin® ball bearings let cars instantly adjust and release under load. Assemblies secure to track, eliminating additional holes. Tough one-piece bases and cam arms are machined from a single piece of aluminum. Compact, low-friction block components combined with Cam-Matic cleats keep weight minimal.

Delrin is a registered trademark of E. I. du Pont de Nemours and Company or its affiliates.

Specifications:

Sheave Ø: 1 9/16 in. (40 mm)

Length: 4 13/16 in. (122 mm)

Width: 2 1/4 in. (57 mm)

Weight: 27 oz. (767 g)

Max. line Ø: 3/8 in. (10 mm)

Height above track: 1 7/16 in. (36 mm)

Max. working load: 450 lbs. (204 kg)

Breaking load: 1600 lbs. (725 kg)

Purchase: 1:1 / 2:1

Fasteners: 10 RH mm (included)

Manual: Big Boat End Controls and Trim Caps (4974.pdf ) (open/save)

Drawing - DWG: 3168.dwg (open/save)
