Harken Big Boat 3:1 CB Genoa Lead Car w/Single Sheave and Dead End

Item #

G323B

Product Description

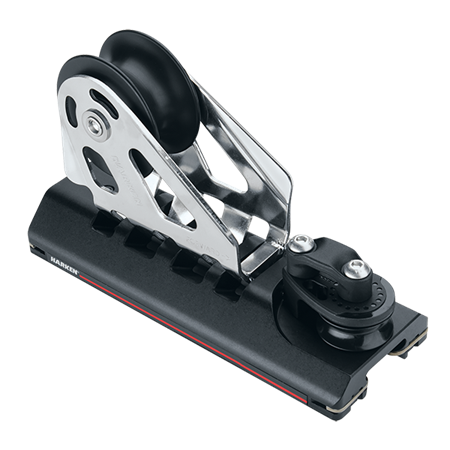

Harken Big Boat 3:1 CB Genoa Lead Car w/Single Sheave and Dead End

CB adjustable genoa lead cars feature recirculating Torlon® ball bearings for easy adjustment under full sheet loads. Stainless steel sheave carriers pivot 60 degrees to accommodate changing lead angles.

Torlon is a registered trademark of Solvay Advanced Polymers L.L.C.

Specifications:

  • Sheave Dia.: 3" (76 mm)

  • Length: 9 1/16" (231 mm)

  • Width: 3 3/8" (85 mm)

  • Weight: 59.54 oz (1688 g)

  • Maximum Working Load: 5000 lb (2268 kg)

  • Breaking Load: 10000 lb (4536 kg)

  • Use with track/rail: R32

  • Drawing - DWG: G323B.DWG (open/save)
    Drawing - DXF: G323B.DXF (open/save)
    3D drawing - IGS: G323B.IGS (open/save)
    Photo - EPS: G323B.eps (open/save)
    Photo - JPG: G323B.jpg (open/save)
