Harken 5mm Shallow Bow Shackle

Item #

2132

Product Description

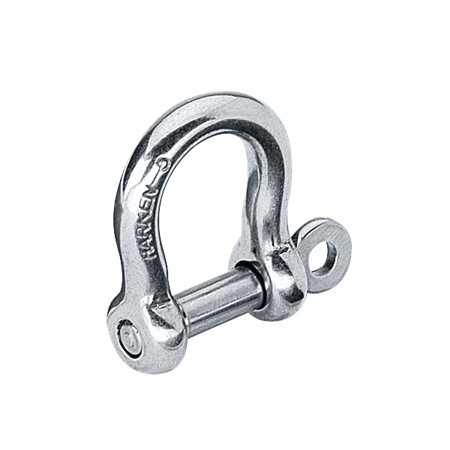

Harken 5mm Shallow Bow Shackle

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.

Bow shackles are best for multidirectional loads. Shallow bow shackles are proportionally wider for their length than regular bow shackles.

Specifications:

  • Shackle pin Ø: 3/16 in. (5 mm)

  • Weight: 0.51 oz. (14.5 g)

  • A: 11/16 in. (17 mm)

  • B: 7/16 in. (11 mm)

  • C: 9/16 in. (14 mm)

  • Max. working load: 1190 lbs. (540 kg)

  • Breaking load: 2380 lbs. (1080 kg)

  • Drawing - DWG: 2132.dwg (open/save)
    Drawing - DXF: 2132.dxf (open/save)
    3D drawing - IGS: 2132.igs (open/save)
    Photo - EPS: 2132.eps (open/save)
    Photo - JPG: 2132.jpg (open/save)
