Harken 57mm Aluminum Footblock

Harken 57mm Aluminum Footblock

The entire line of Black Magic® AirBlocks® has been redesigned with a sleek new look. Their unique, performance-packed engineering remains exactly the same.

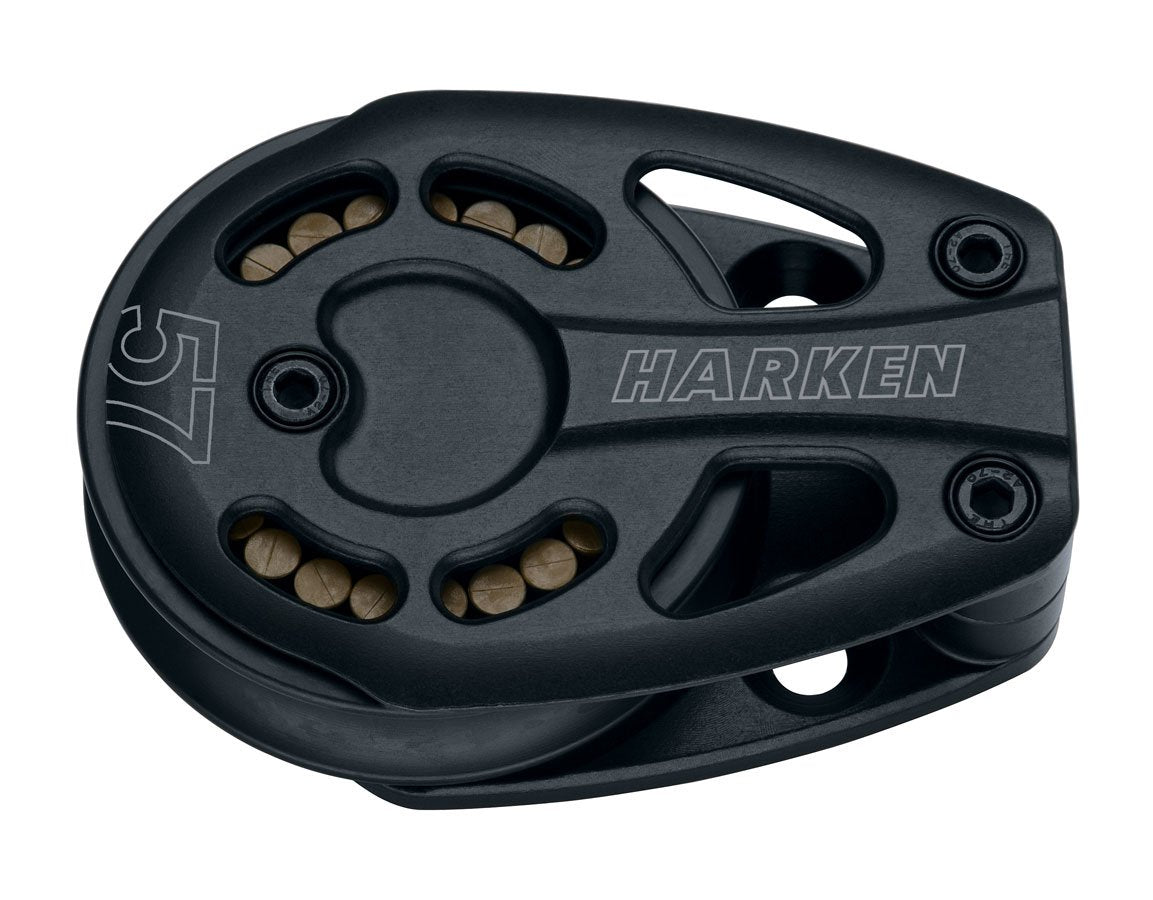

Carrying some of the highest loads imposed by running rigging, these strong, lightweight blocks feature Torlon® roller bearings housed in a center cage. Rollers stay parallel for low-friction efficiency. Sculpted hardcoat-anodized aluminum sideplates protect sideload ball bearings. Dissimilar metals are isolated to minimize corrosion. Blocks are easily disassembled with a single hex wrench.

Either metric or imperial flathead fasteners may be used for mounting and are not exposed.

Specifications:

Sheave Ø - 2 1/4" (57mm)

Length - 3 5/16" (84mm)

Height - 1" (25mm)

Weight - 4.29 oz (122 g)

Maximum line Ø - 7/16" (12mm)

Maximum working load - 2500 lb (1134 kg)

Breaking load - 5000 lb (2268 kg)

Number of fasteners - 4

Fasteners - 1/4 FH in (6 FH mm)

A 9/32" (7mm)

B - 7/8" (23mm)

C - 2 1/32" (52mm)

D - 5/8" (16mm)

E - 2 9/32" (58mm)

F - 3 5/16" (84mm)

G - 15/32" (12mm)
