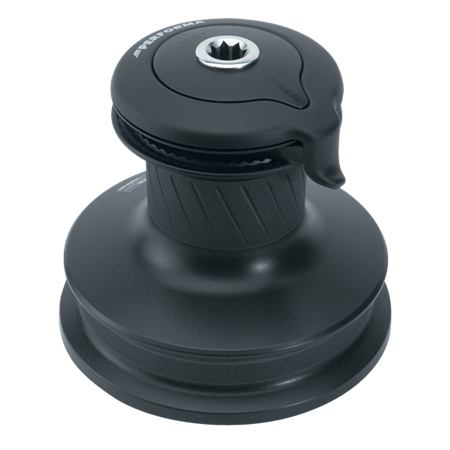

Harken #40 Self Tailing Radial Quattro Racing Winch

Item #

40STQP

Product Description

Harken #40 Self Tailing Radial Quattro Racing Winch

The patented Quattro is an innovative all-in-one winch used on boats that require extremely fast winches to handle large asymmetrical spinnakers, but also need power to trim the genoa upwind.

Specifications:


  • Drum Dia. Lower - 6 1/16" (154mm)

  • Drum Dia. Upper - 3 1/8" (80mm)

  • Base Dia. - 7 1/2" (180mm)

  • Height - 6 7/8" (175mm)

  • Weight - 10.2 lbs. (4.6 kg.)

  • Line Dia. Min - 5/16" (8mm)

  • Line Dia. Max - 1/2" (12mm)

  • Line Entry Height Lower - 1 5/16" (34mm)

  • Line Entry Height Upper - 3 1/4" (82mm)

  • Gear Ratio 1 - 2.13

  • Gear Ratio 2 - 6.28

  • Power Ratio 1 - 13.50

  • Power Ratio 2 - 39.9

  • Fastener Circle - 4 7/8" (123mm)

  • Fasteners (SH or HH) - 5 x 1/4 (5 x M6)
