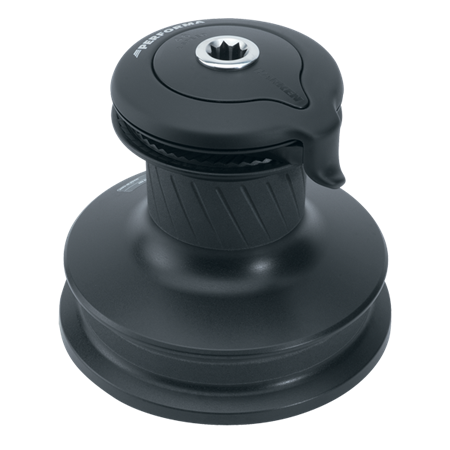

Harken 40 Self-Tailing Quattro Performa Winch - 2 Drum, 2 Speed

Item #

40STQP

Product Description

All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Self-tailing winches have narrow composite jaws to ensure superior holding power on small-diameter line. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.

Features

Configuration - Quattro Speed 2

Drum Ø upper (mm) - 80 mm

Drum Ø upper (in) - 3 1/8 in

Drum Ø lower (mm) - 154 mm

Drum Ø lower (in) - 6 1/16 in

Base Ø (mm) - 180 mm

Base Ø (in) - 7 1/8 in

Height (mm) - 175 mm

Height (in) - 6 7/8 in

Weight (kg) - 4.6 kg

Weight (lb) - 10.2 lb

Line entry height lower (in) - 15/16 in

Line entry height upper (in) - 3 1/4 in

Minimum line Ø (mm) - 8 mm

Minimum line Ø (in) - 5/16 in

Maximum line Ø (mm) - 12 mm

Maximum line Ø (in) - 1/2 in

Fastener circle (mm) - 123 mm

Fastener circle (in) - 4 7/8 in

Fasteners (mm) - M6 HH, M6 SH mm

Fasteners (in) - 1/4 SH in

Number of fasteners - 5

Gear ratio - 12.13

Gear ratio - 26.28

Power ratio - 113.50

Power ratio - 239.90
