Harken 3T Aluminum V Block

Item #

3295AL

Product Description

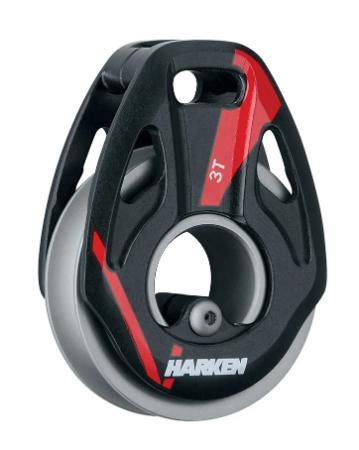

Harken 3T Aluminum V Block

The V block delivers another breakthrough in Harken’s loop block series for Grand-Prix racers. Harken engineers have simplified the mechanics by combining the axial and thrust bearings into a single bearing set of V-shaped titanium rollers. The result is a strong, lightweight block that offers unmatched efficiency at high loads, while spinning freely at low loads for smooth easing in light air.

Harken V blocks are standard with 3D-molded carbon sideplates, titanium sheave, and captive titanium roller bearings. V blocks are easy to disassemble for inspection and maintenance.

Specifications:

  • Sheave Ø: 2 3/16 in (56 mm)

  • Length: 3 in (77 mm)

  • Weight: 4.4 oz (124.7 g)

  • Maximum line Ø: 7/16 in (11 mm)

  • Maximum working load: 6600 lb (3000 kg)

  • Breaking load: 13200 lb (6000 kg)

    Footnote: Loop not included

  • Manual: V Blocks (5097.pdf ) (open/save)
    Manual: V Blocks (5097.pdf ) (open/save)
    Manual: Custom Products (M1026.pdf ) (open/save)
    Manual: Custom Products (M1026.pdf ) (open/save)
    Drawing - DWG: 3295AL.dwg (open/save)
    Drawing - DXF: 3295AL.dxf (open/save)
    3D drawing - IGS: 3295AL.igs (open/save)
    Photo - EPS: 3295AL.eps (open/save)
    Photo - JPG: 3295AL.jpg (open/save)
