Harken 5/16" (8mm) Twist Shackle

Item #

2119

$25.16 $31.30 You Save 19% ($6.14)

Usually ships within 1-3 days

Description
Downloads & Resources
Articles

Product Description

Harken 5/16" (8mm) Twist Shackle

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. Twist shackles are forged with a 90-degree twist so the two attachment points can be perpendicular without torquing.

Specifications:

Shackle pin Ø: 5/16 in. (8 mm)

Weight: 1.84 oz. (52 g)

A: 1 5/8 in. (41 mm)

B: 11/16 in. (17 mm)

Max. working load: 3040 lbs. (1380 kg)

Breaking load: 6080 lbs. (2760 kg)

Drawing - DWG: 2119.dwg (open/save)

Drawing - DXF: 2119.dxf (open/save)

3D drawing - IGS: 2119.igs (open/save)

Photo - EPS: 2119.eps (open/save)

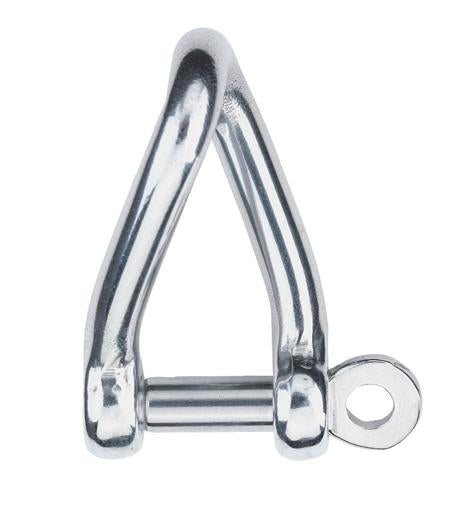

Photo - JPG: 2119.jpg (open/save)
