Harken 316 8mm Long Shackle

Item #

2118

$20.66 $26.45 You Save 21% ($5.79)

Usually ships within 1-3 days

Description
Downloads & Resources
Articles

Product Description

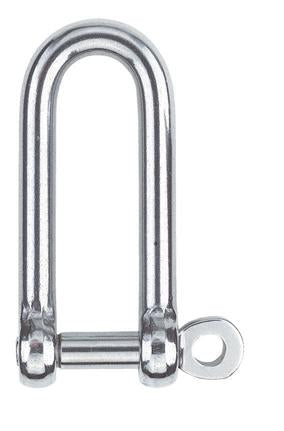

Harken 316 8mm Long Shackle

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.

Long shackles have a similar shape to "D" shackles but are proportionally longer for their width.

Specifications:

Shackle pin Ø: 5/16 in. (8 mm)

Weight: 3.01 oz. (85.5 g)

A: 2 1/4 in. (57 mm)

B: 5/8 in. (16 mm)

Max. working load: 3040 lbs. (1380 kg)

Breaking load; 6080 lbs. (2760 kg)

3D drawing - IGS: 2118.IGS (open/save)

Photo - EPS: 2118.eps (open/save)

Photo - JPG: 2118.jpg (open/save)
