Harken 1/4" (6mm) Bow Shackle

Item #

2110

Product Description

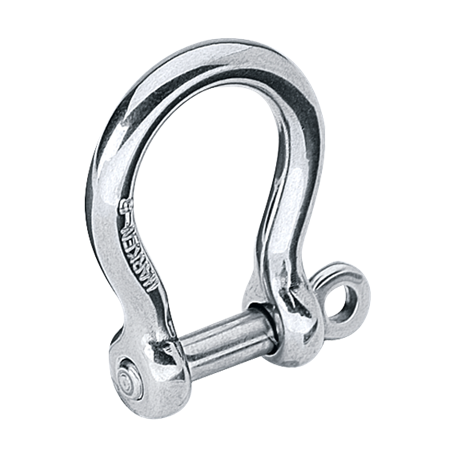

Harken 1/4" (6mm) Bow Shackle

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. Bow shackles are best for multi-directional loads. Their large interior opening allows plenty of articulation especially when attached to a round bail.

Specifications:

  • Shackle pin Ø: 1/4 in. (6 mm)

  • Weight: 1.04 oz. (29.5 g)

  • A: 1 1/16 in. (27 mm)

  • B: 9/16 in. (14 mm)

  • C: 3/4 in. (19 mm)

  • Max. working load: 1650 lbs. (750 kg)

  • Breaking load: 3300 lbs. (1500 kg)

  • Drawing - DWG: 2110.dwg (open/save)
    Drawing - DXF: 2110.dxf (open/save)
    3D drawing - IGS: 2110.igs (open/save)
    Photo - EPS: 2110.eps (open/save)
    Photo - JPG: 2110.jpg (open/save)
