Harken 3/16" (5mm) Twist Shackle

Item #

2105

Product Description

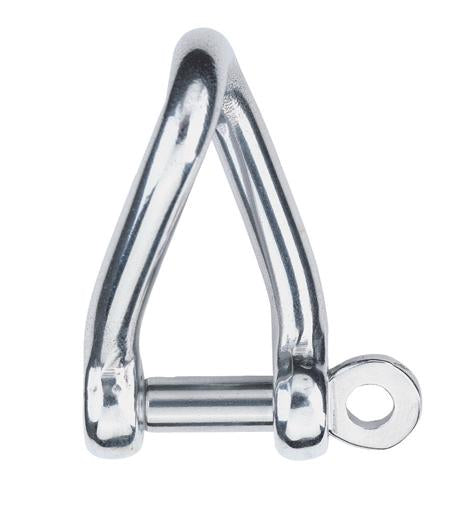

Harken 3/16" (5mm) Twist Shackle

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.

Twist shackles are forged with a 90-degree twist so the two attachment points can be perpendicular without torquing.

Specifications:

  • Shackle pin Ø: 3/16 in. (5 mm)

  • Weight: 0.78 oz. (22 g)

  • A : 1 7/16 in. (37 mm)

  • B: 3/8 in. (10 mm)

  • Max. working load: 1190 lbs. (540 kg)

  • Breaking load: 2380 lbs. (1080 kg)

  • Drawing - DWG: 2105.dwg (open/save)
    Drawing - DXF: 2105.dxf (open/save)
    Photo - EPS: 2105.eps (open/save)
    Photo - JPG: 2105.jpg (open/save)
