Harken 316 5mm Long Shackle

Item #

2104

Product Description

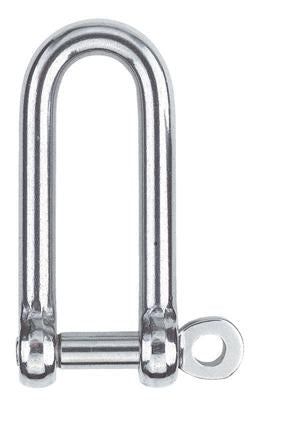

Harken 316 5mm Long Shackle

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.

Long shackles have a similar shape to "D" shackles but are proportionally longer for their width.

Specifications:

  • Shackle pin Ø: 3/16 in. (5 mm)

  • Weight: 0.78 oz. (22 g)

  • A: 1 1/2 in. (38 mm)

  • B: 3/8 in. (10 mm)

  • Max. working load: 1190 lbs. (540 kg)

  • Breaking load: 2380 lbs. (1080 kg)

  • 3D drawing - IGS: 2104.IGS (open/save)
    Photo - EPS: 2104.eps (open/save)
    Photo - JPG: 2104.jpg (open/save)
