Harken 3/16" 5mm Large Open Shackle

Item #

2106

$22.95 $25.75 You Save 10% ($2.80)

Usually ships within 1-3 days

Description
Downloads & Resources
Articles

Product Description

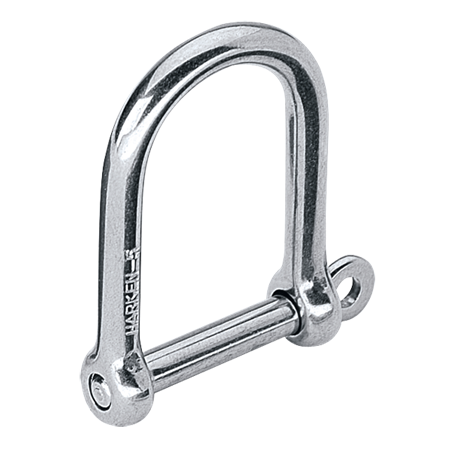

Harken 3/16" 5mm Large Open Shackle

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.

Large open shackles have a similar shape to "D" shackles but are proportionally wider for their length.

Specifications:

Shackle pin Ø: 3/16 in. (5 mm)

Weight: 0.88 oz. (25 g)

A: 1 5/16 in. (33 mm)

B: 13/16 in. (20 mm)

Max. working load: 770 lbs. (350 kg)

Breaking load: 2200 lbs. (1000 kg)

3D drawing - IGS: 2106.IGS (open/save)

Photo - EPS: 2106.eps (open/save)

Photo - JPG: 2106.jpg (open/save)
