Harken 3/16" (5mm) Captive Halyard Shackle

Item #

2107

Product Description

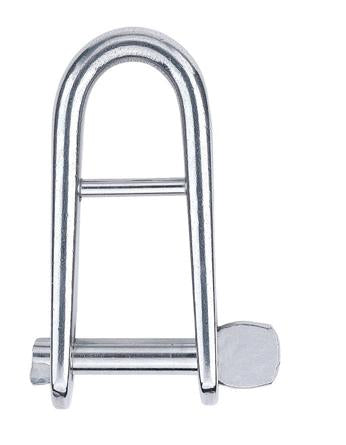

Harken 3/16" (5mm) Captive Halyard Shackle

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.

These shackles have a secondary pin to keep the shackle permanently secured to the halyard and in the correct orientation.

Specifications:

  • Shackle pin Ø: 3/16 in. (5 mm)

  • Weight: 1.12 oz. (32 g)

  • A: 1 3/8 in. (35 mm)

  • B: 9/16 in. (14 mm)

  • D: 9/16 in. (14 mm)

  • Max. working load: 1190 lbs. (540 kg)

  • Breaking load: 2380 lbs. (1080 kg)

  • Drawing - DWG: 2107.dwg (open/save)
    Drawing - DXF: 2107.dxf (open/save)
    Photo - EPS: 2107.eps (open/save)
    Photo - JPG: 2107.jpg (open/save)
