Harken 4mm Shallow Bow Shackle

Item #

2131

$8.95 $10.25 You Save 12% ($1.30)

Usually ships within 1-3 days

Description
Downloads & Resources
Articles

Product Description

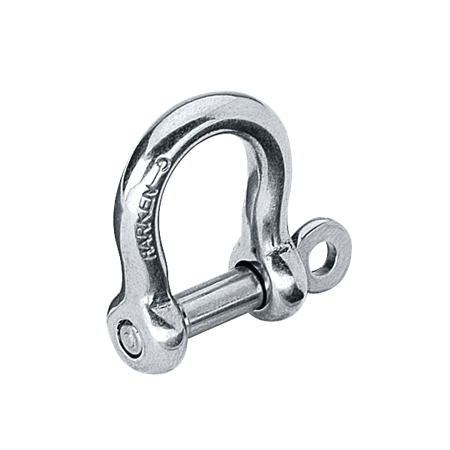

Harken 4mm Shallow Bow Shackle

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.

Bow shackles are best for multi-directional loads. Shallow bow shackles are proportionally wider for their length than regular bow shackles.

Specifications:

Shackle pin Ø: 5/32 in. (4 mm)

Weight: 0.3 oz. (8.5 g)

A: 5/8 in. (16 mm)

B: 5/16 in. (8 mm)

C: 7/16 in. (11 mm)

Max. working load: 810 lbs. (367 kg)

Breaking load: 1620 lbs. (735 kg)

Drawing - DWG: 2131.dwg (open/save)

Drawing - DXF: 2131.dxf (open/save)

3D drawing - IGS: 2131.igs (open/save)

Photo - EPS: 2131.eps (open/save)

Photo - JPG:2131.jpg (open/save)
