Harken 13/32" (10mm) "D" Shackle

Item #

2122

Product Description

Harken 13/32" (10mm) "D" Shackle

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.

"D" shackles are the most common type of shackle. They are best suited for aligned attachment points.

Specifications:

  • Shackle pin Ø: 13/32 in. (10 mm)

  • Weight: 4.22 oz. (120 g)

  • A: 1 1/4 in. (32 mm)

  • B: 13/16 in. (20 mm)

  • Max. working load: 4870 lbs. (221 kg)

  • Breaking load: 9740 lbs. (4420 kg)

  • Drawing - DWG: 2122.DWG (open/save)
    Drawing - DXF: 2122.DXF (open/save)
    3D drawing - IGS: 2122.IGS (open/save)
    Photo - EPS: 2122.eps (open/save)

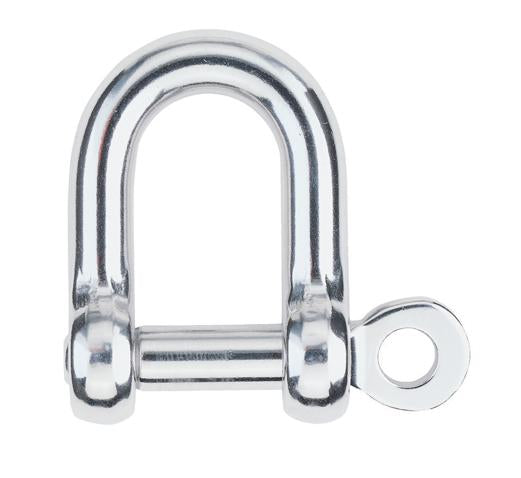

    Photo - JPG: 2122.jpg (open/save)
