Harken 1.5T Carbon V Block

Item #

3294

Product Description

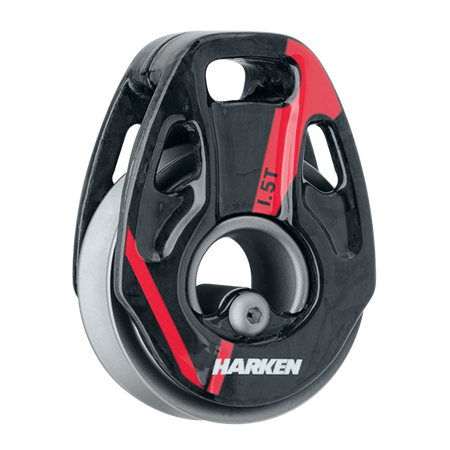

Harken 1.5T Carbon V Block

The V block delivers another breakthrough in Harken’s loop block series for Grand-Prix racers. Harken engineers have simplified the mechanics by combining the axial and thrust bearings into a single bearing set of V-shaped titanium rollers. The result is a strong, lightweight block that offers unmatched efficiency at high loads, while spinning freely at low loads for smooth easing in light air.

Harken V blocks are standard with 3D-molded carbon sideplates, titanium sheave, and captive titanium roller bearings. V blocks are easy to disassemble for inspection and maintenance.

Specifications:

  • Sheave Ø: 1 7/8 in (47 mm)

  • Length: 2 5/8 in (66 mm)

  • Weight: 2.85 oz (80.8 g)

  • Maximum line Ø: 11/32 in (9 mm)

  • Maximum working load: 3300 lb (1500 kg)

  • Breaking load: 6600 lb (3000 kg)

    Footnote: Loop not included

  • Manual: Custom Products (M1026.pdf ) (open/save)
    Manual: V Blocks (5097.pdf ) (open/save)
    Manual: V Blocks (5097.pdf ) (open/save)
    Manual: Custom Products (M1026.pdf ) (open/save)
    Drawing - DWG: 3294.dwg (open/save)
    Drawing - DXF: 3294.dxf (open/save)
    3D drawing - IGS: 3294.igs (open/save)
    Photo - EPS: 3294.eps (open/save)
    Photo - JPG: 3294.jpg (open/save)
